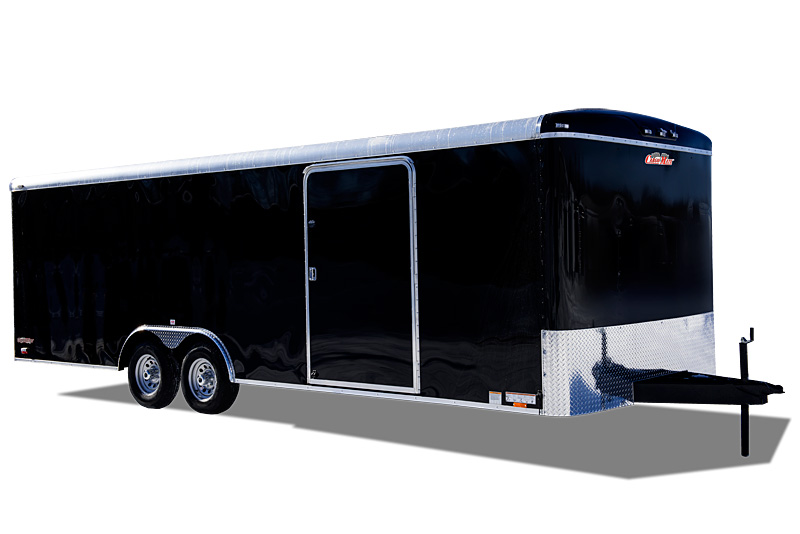

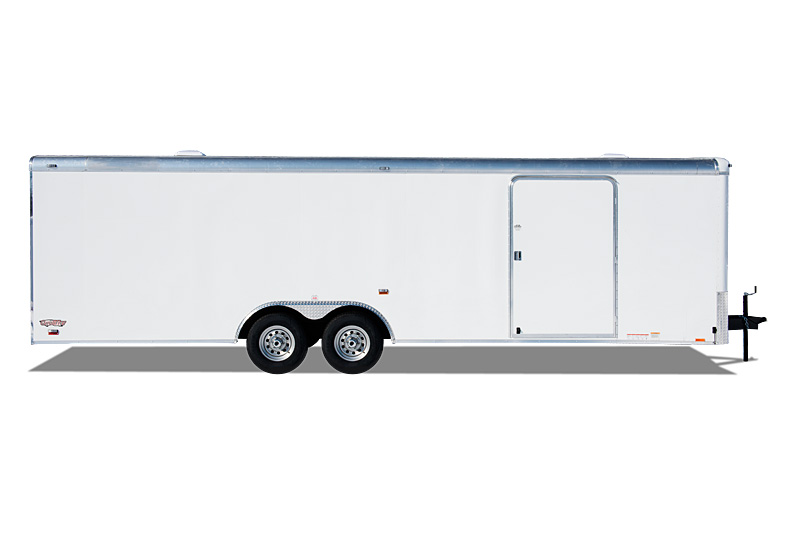

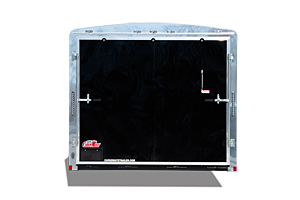

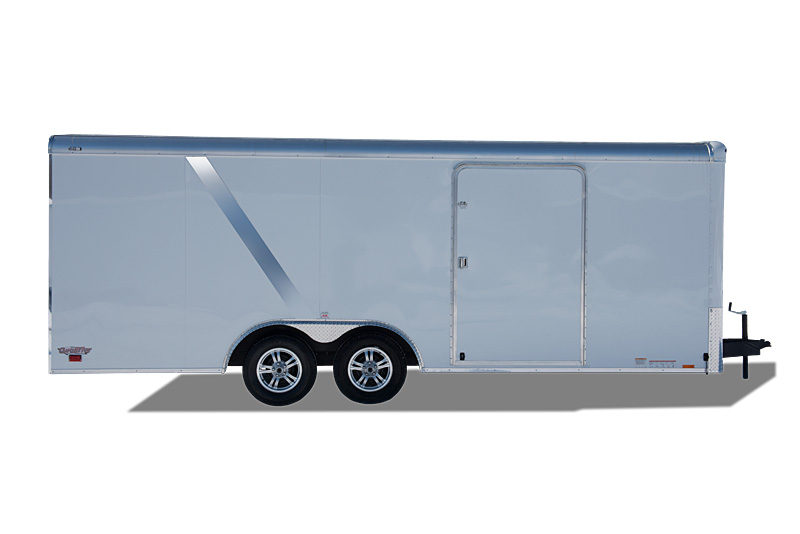

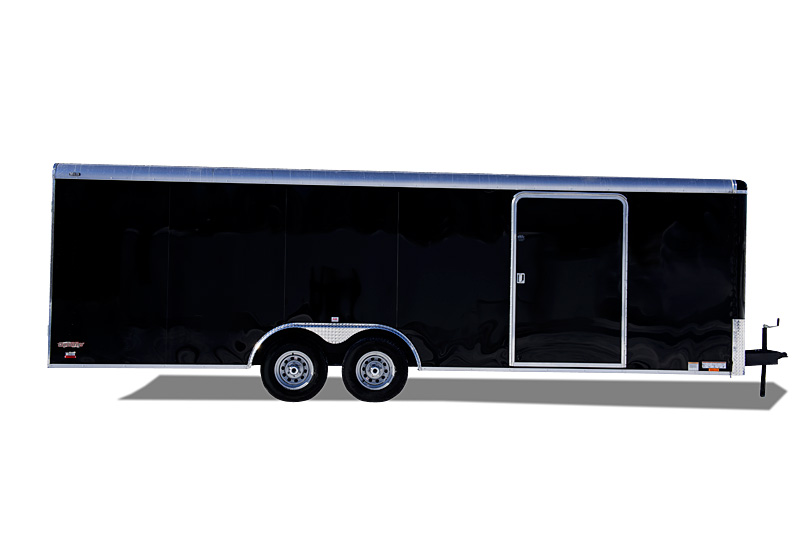

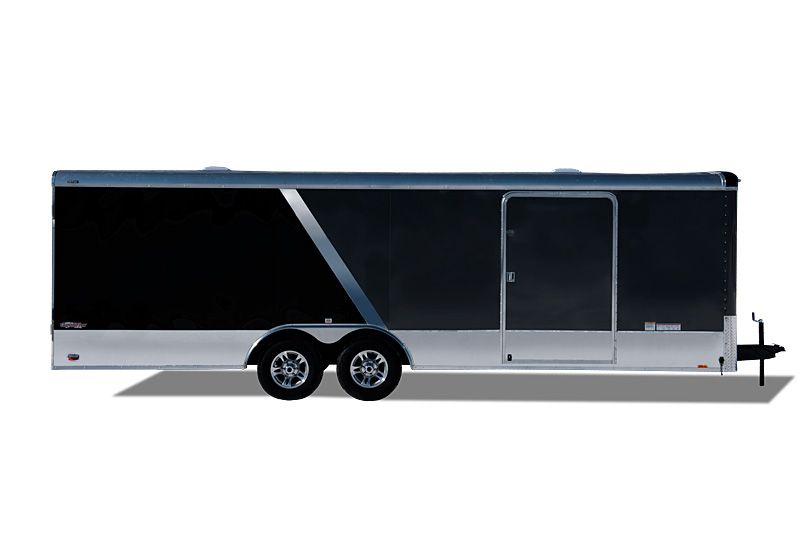

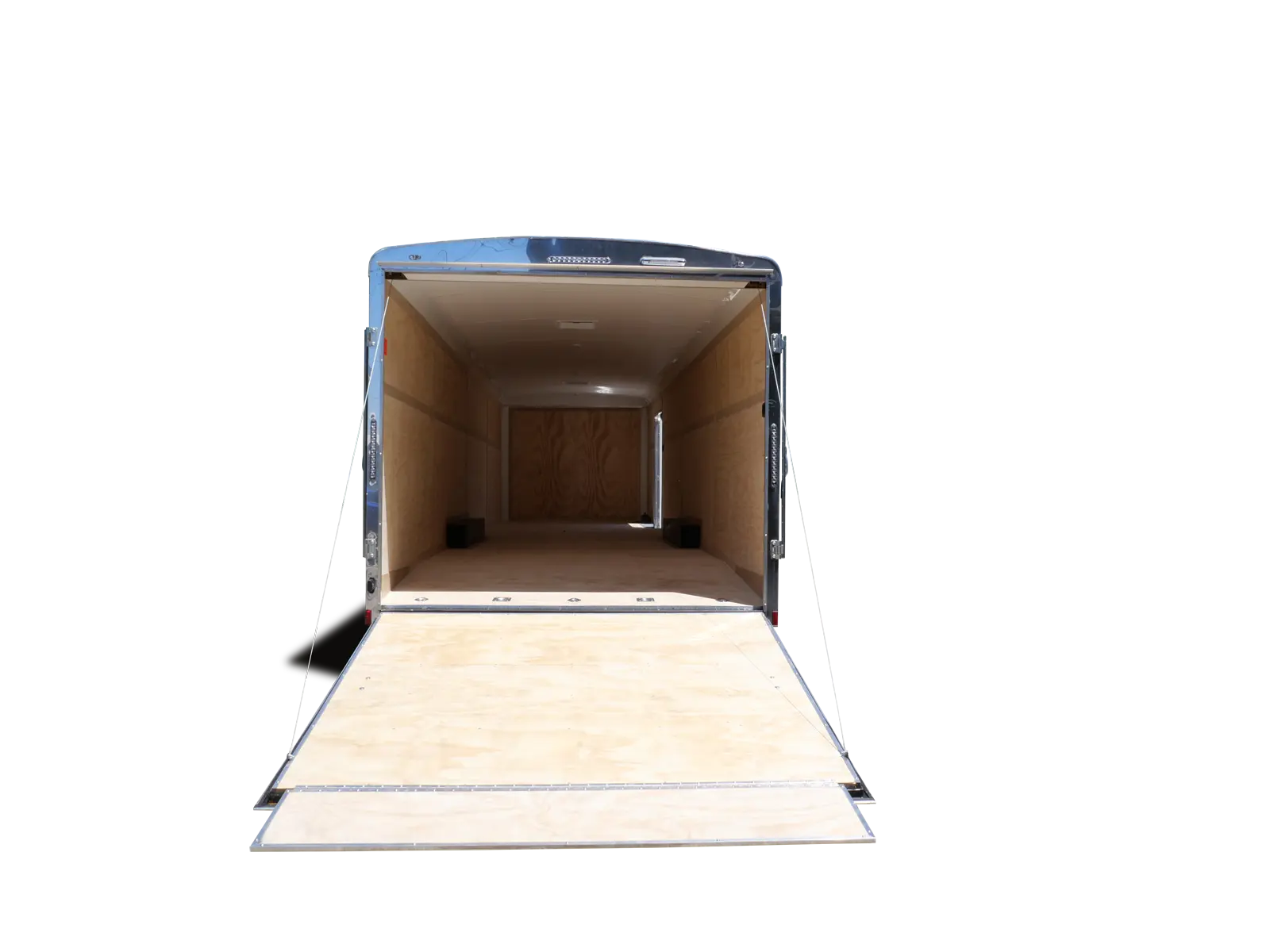

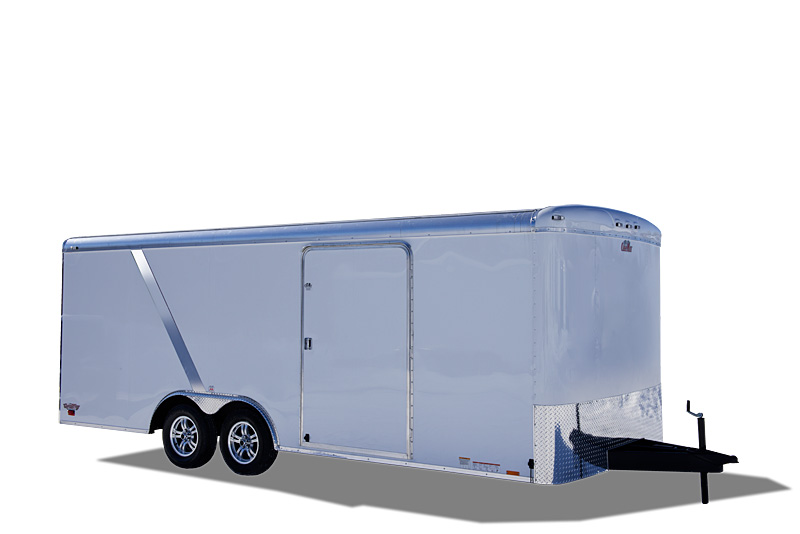

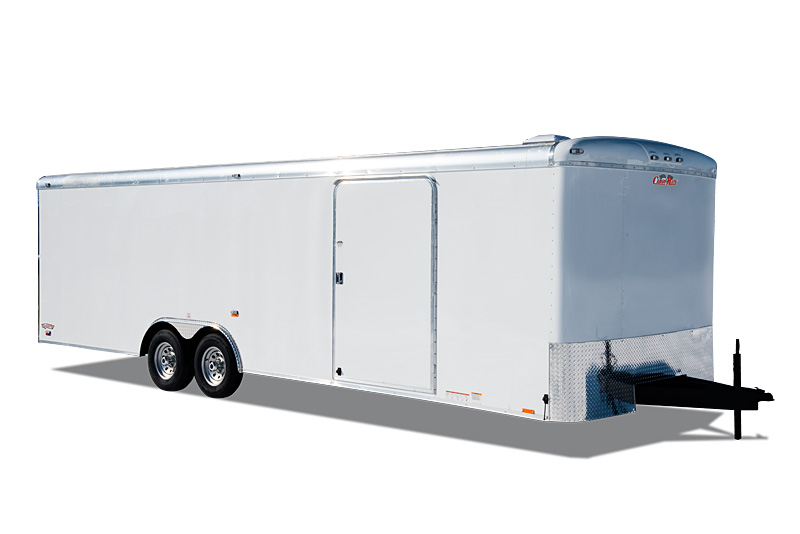

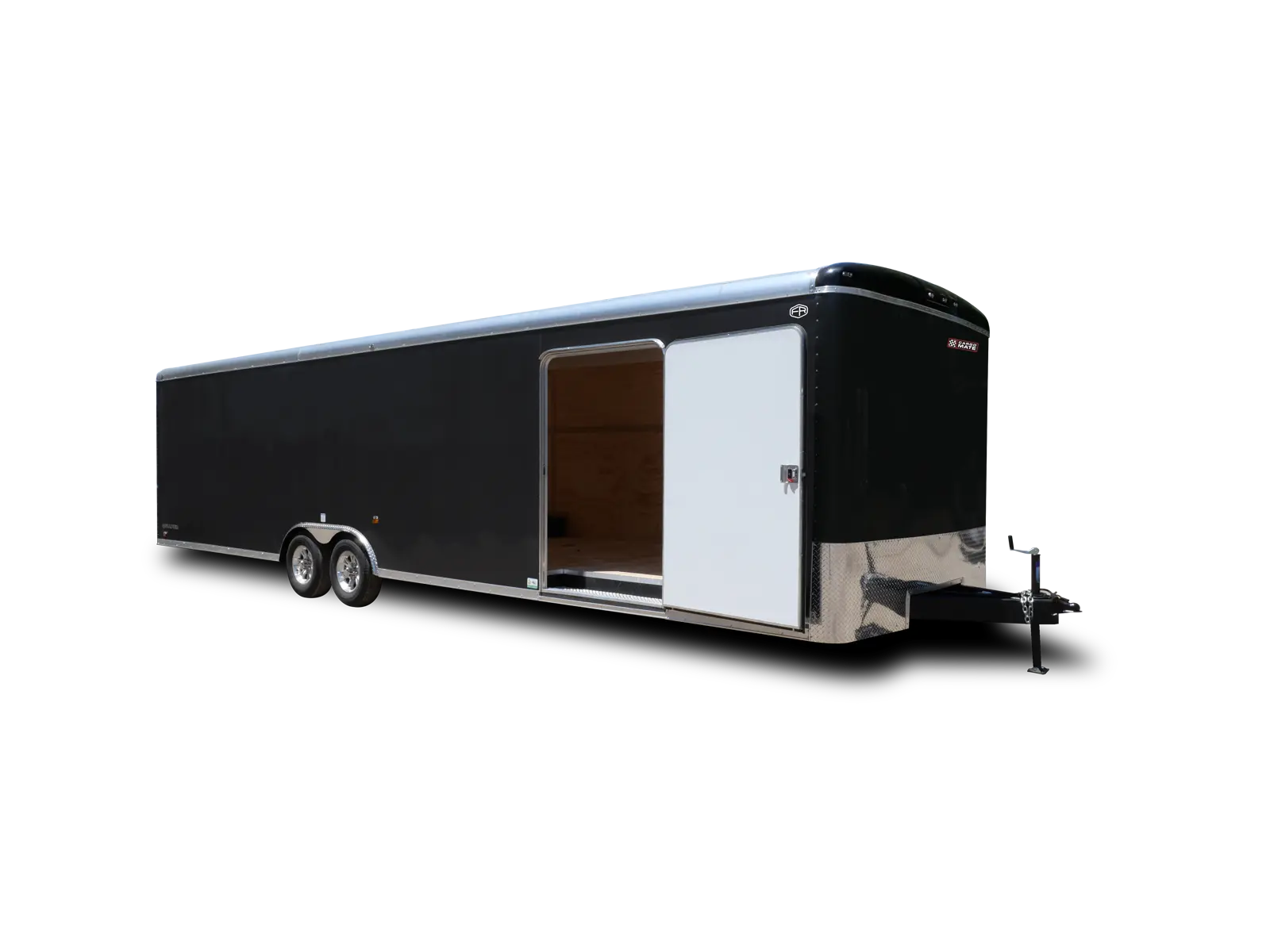

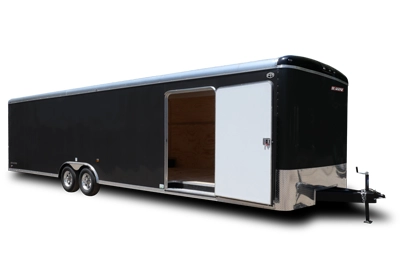

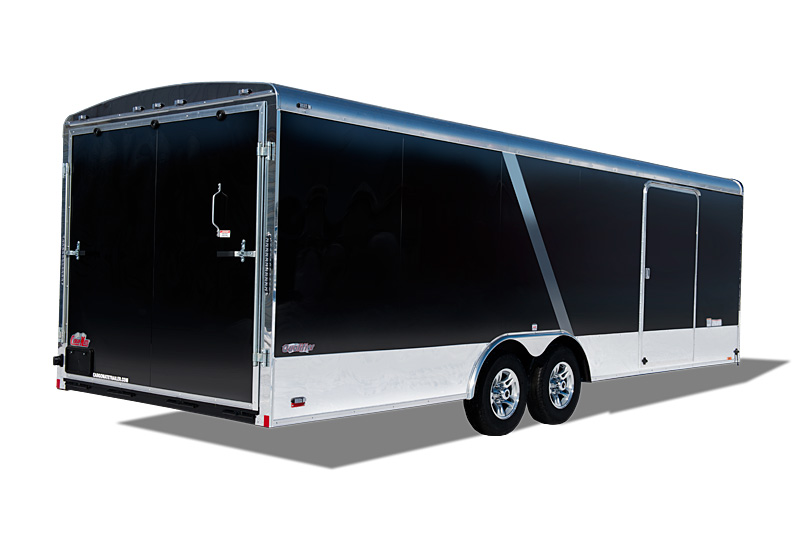

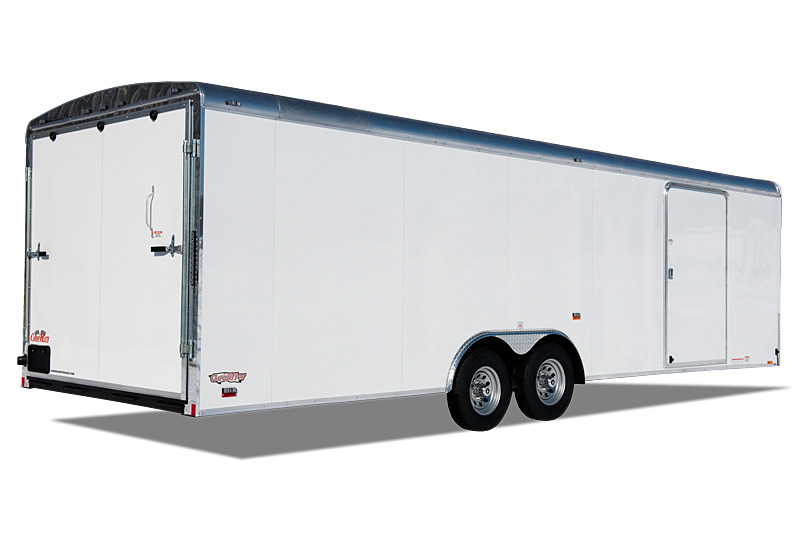

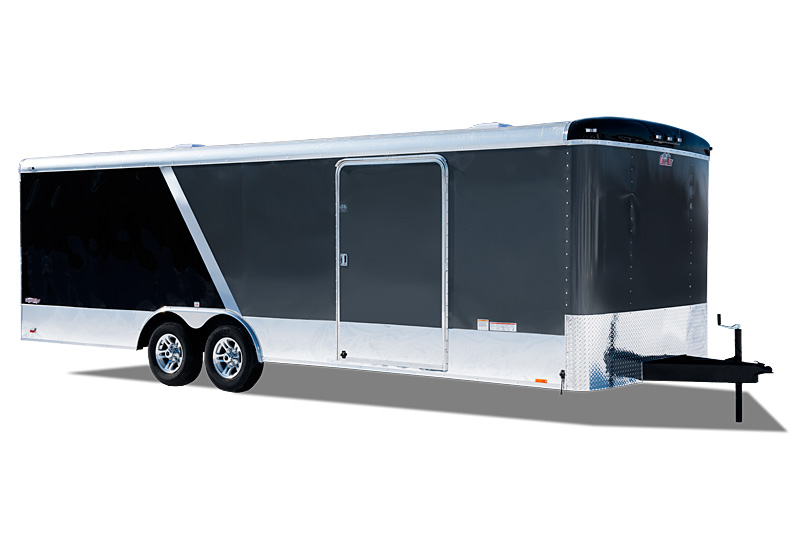

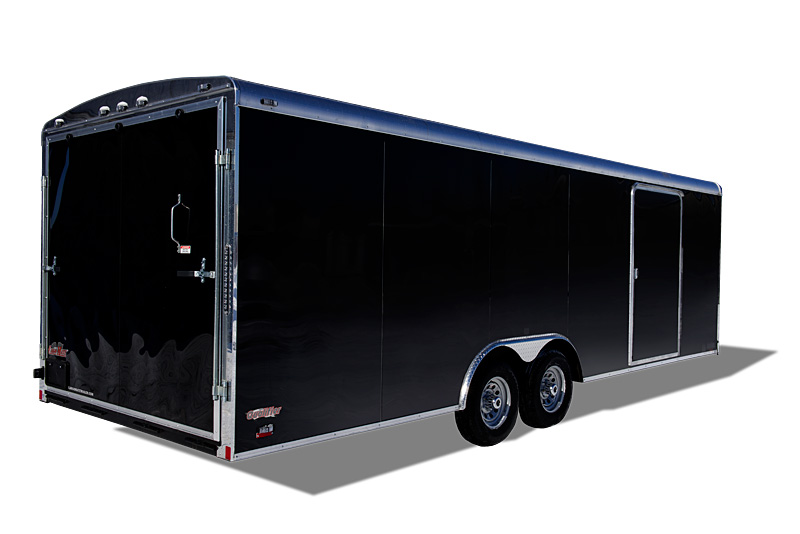

Qualifier auto haulers range in size from a 8.5X18 tandem axle to a 8.5’ x 48’ triple axle model. Electric brakes are standard on all Qualifier models. The standard payload capacities range from 3,460 - 6,750 lb. on tandem axle bumper pull models to 4,330 - 10,580 lb. on gooseneck models. A ramp door with no-show beavertail is standard on all Qualifier auto haulers.

VIEW THE TOP REASONS TO BUY CARGO MATE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:QF8518TA2QF8520TA2QF8522TA2QF8524TA2QF8518TA3QF8520TA3QF8522TA3QF8524TA3QF8526TA3QF8528TA3QF8530TA3QF8532TA3QFG/F8526TA3QFG/F8528TA3QFG/F8530TA3QFG/F85532TA3QFG/F8534TTA3QFG/F8536TTA3QFG/F8538TTA3QFG/F8540TTA4QFG/F8542TTA4QFG/F8544TTA4QFG/F8546TTA4QFG/F8548TTA4
GVWR:7000 lb.7000 lb.7000 lb.7000 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.9800 lb.14700 lb.14700 lb.14700 lb.18000 lb.18000 lb.18000 lb.18000 lb.18000 lb.
Payload Capacity:4135 lb.3910 lb.3685 lb.3460 lb.6600 lb.6375 lb.6150 lb.5925 lb.5345 lb.5025 lb.4705 lb.4386 lb.4630 lb.4480 lb.4330 lb.4180 lb.8480 lb.8180 lb.7880 lb.10580 lb.10180 lb.9780 lb.9380 lb.8980 lb.
Exterior Length:21' 10"23' 10"25' 10"27' 10"21' 10"23' 10"25' 10"27' 10"29' 10"31' 10"33' 10"35' 10"21' 10"23' 10"25' 10"27' 10"34' 6"36' 6"38' 6"40' 6"42' 6"44' 6"46' 6"48' 6"
Exterior Width:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"9' 0"9' 0"9' 0"9' 0"9' 0"
Interior Length:18' 7"20' 7"22' 7"24' 7"18' 7"20' 7"22' 7"24' 7"26' 7"28' 7"30' 7"32' 7"Total Length: 26' 4"
Lower Deck: 18' 0"		Total Length: 28' 4"
Lower Deck: 20' 0"		Total Length: 30' 4"
Lower Deck: 22' 0"		Total Length: 32' 4"
Lower Deck: 24' 0"		Total Length: 34' 4"
Lower Deck: 26' 0"		Total Length: 36' 4"
Lower Deck: 28' 0"		Total Length: 38' 4"
Lower Deck: 30' 0"		Total Length: 40' 4"
Lower Deck: 32' 0"		Total Length: 42' 4"
Lower Deck: 34' 0"		Total Length: 44' 4"
Lower Deck: 36' 0"		Total Length: 46' 4"
Lower Deck: 38' 0"		Total Length: 48' 4"
Lower Deck: 40' 0"
Interior Width:Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Interior Height:6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 8"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 6"6' 10"6' 10"6' 10"6' 10"6' 10"
Rear Door Type:RampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRampRamp
Rear Door Width:7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"7' 5"
Rear Door Height:6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 2"6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 6' 4"6' 4"6' 4"6' 4"6' 4"
Coupler Size:2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"2-5/16" / 2"
Curb Weight:2865 lb.3090 lb.3315 lb.3540 lb.3200 lb.3425 lb.3650 lb.3875 lb.4455 lb.4775 lb.5095 lb.5415 lb.5170 lb.5320 lb.5470 lb.5620 lb.6220 lb.6520 lb.6820 lb.7420 lb.7820 lb.8220 lb.8620 lb.9020 lb.
Hitch Weight:287 lb.309 lb.332 lb.354 lb.320 lb.343 lb.365 lb.388 lb.446 lb.478 lb.510 lb.542 lb.1034 lb.1064 lb.1094 lb.1124 lb.1244 lb.1304 lb.1364 lb.1484 lb.1564 lb.1644 lb.1724 lb.1804 lb.
Hitch Height:20"20"20"20"20"20"20"20"22"22"22"22"40"40"40"40"40"40"40"40"40"40"40"40"
Platform Height:18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"18"20"
Axle:2-3,5002-3,5002-3,5002-3,5002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2002-5,2003-5,2003-5,2003-5,2003-6,0003-6,0003-6,0003-6,0003-6,000
Brakes:ElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST225/75R15/DST235/80R16/EST235/80R16/EST235/80R16/EST235/80R16/EST235/80R16/E
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt6 Bolt 8 Bolt 8 Bolt 8 Bolt 8 Bolt 8 Bolt
Main Frame:6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam8" I-Beam10" I-Beam8" I-Beam10" I-Beam10" I-Beam10" I-Beam10" I-Beam10" I-Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print
  • 102" Wide Body Design

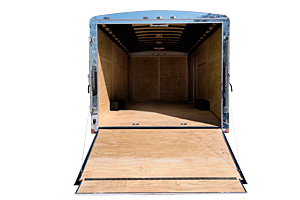

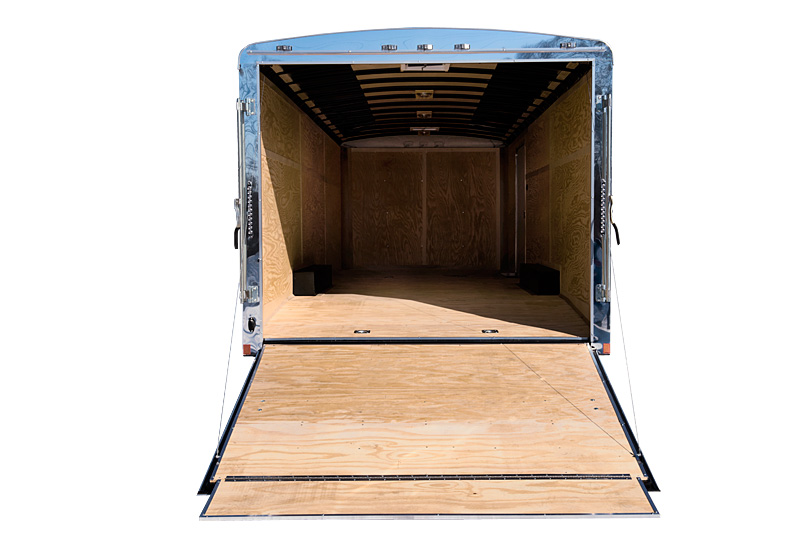

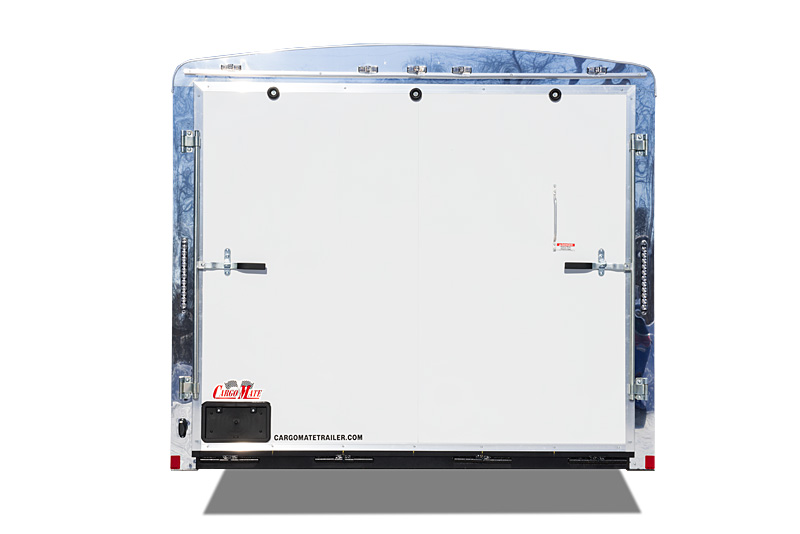

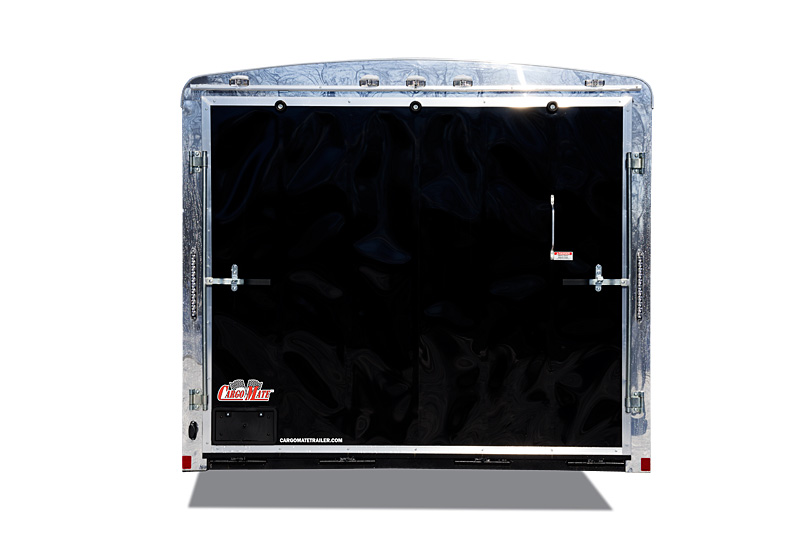

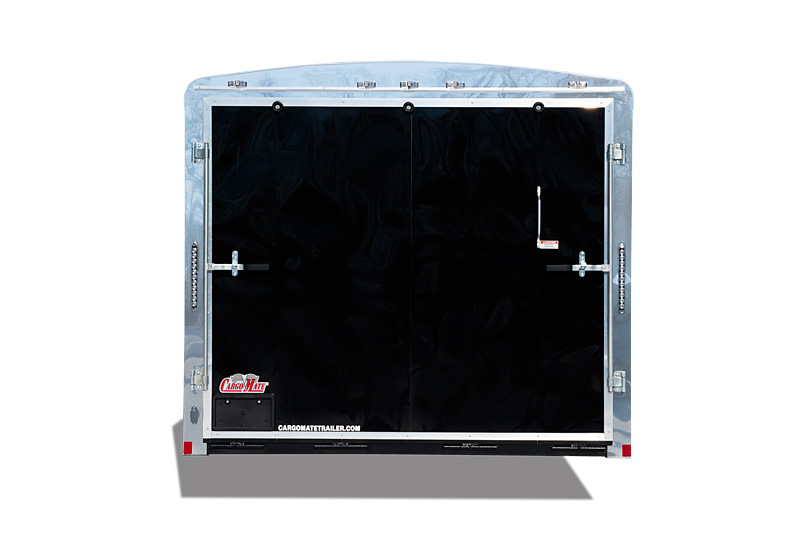

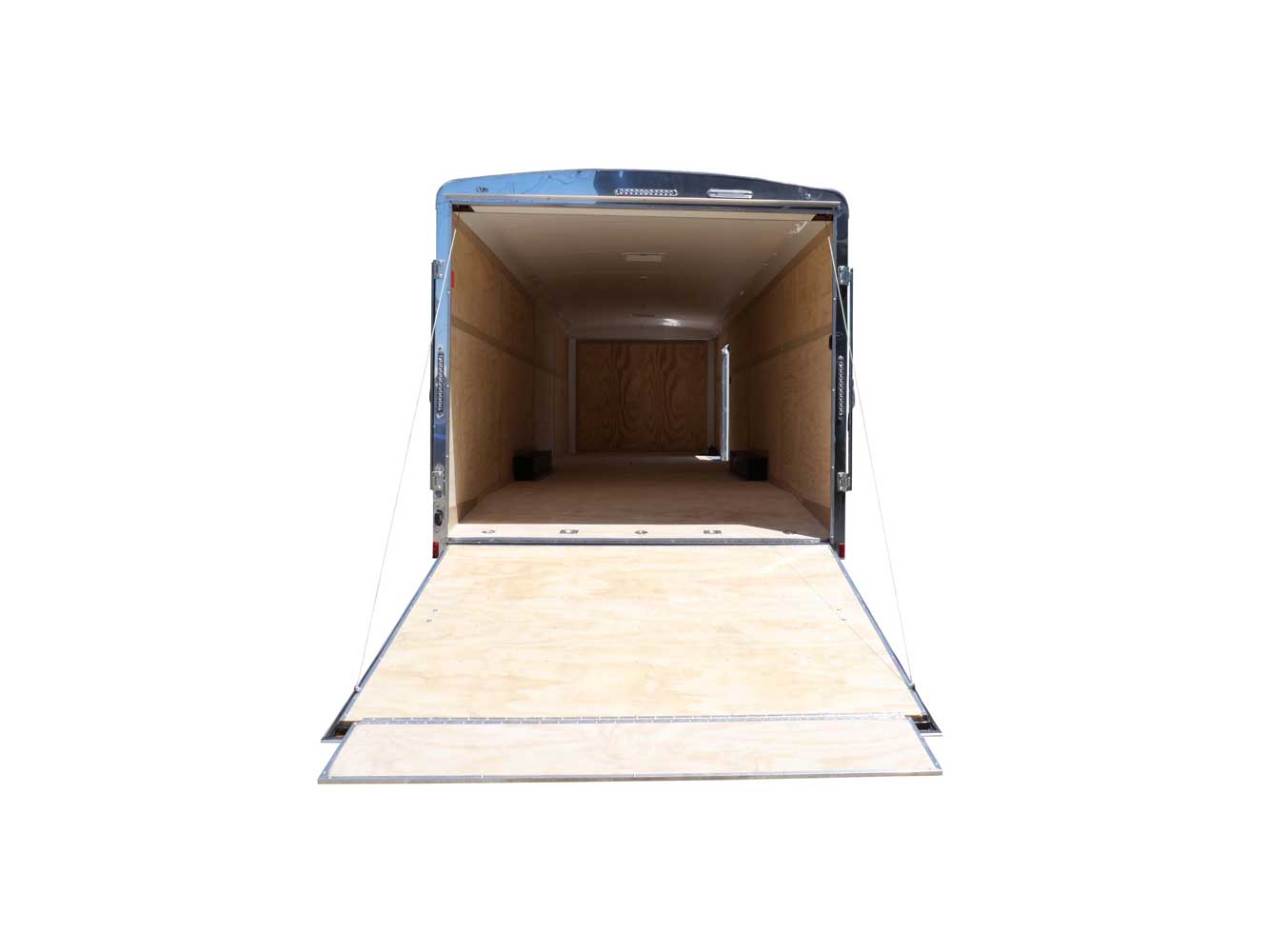

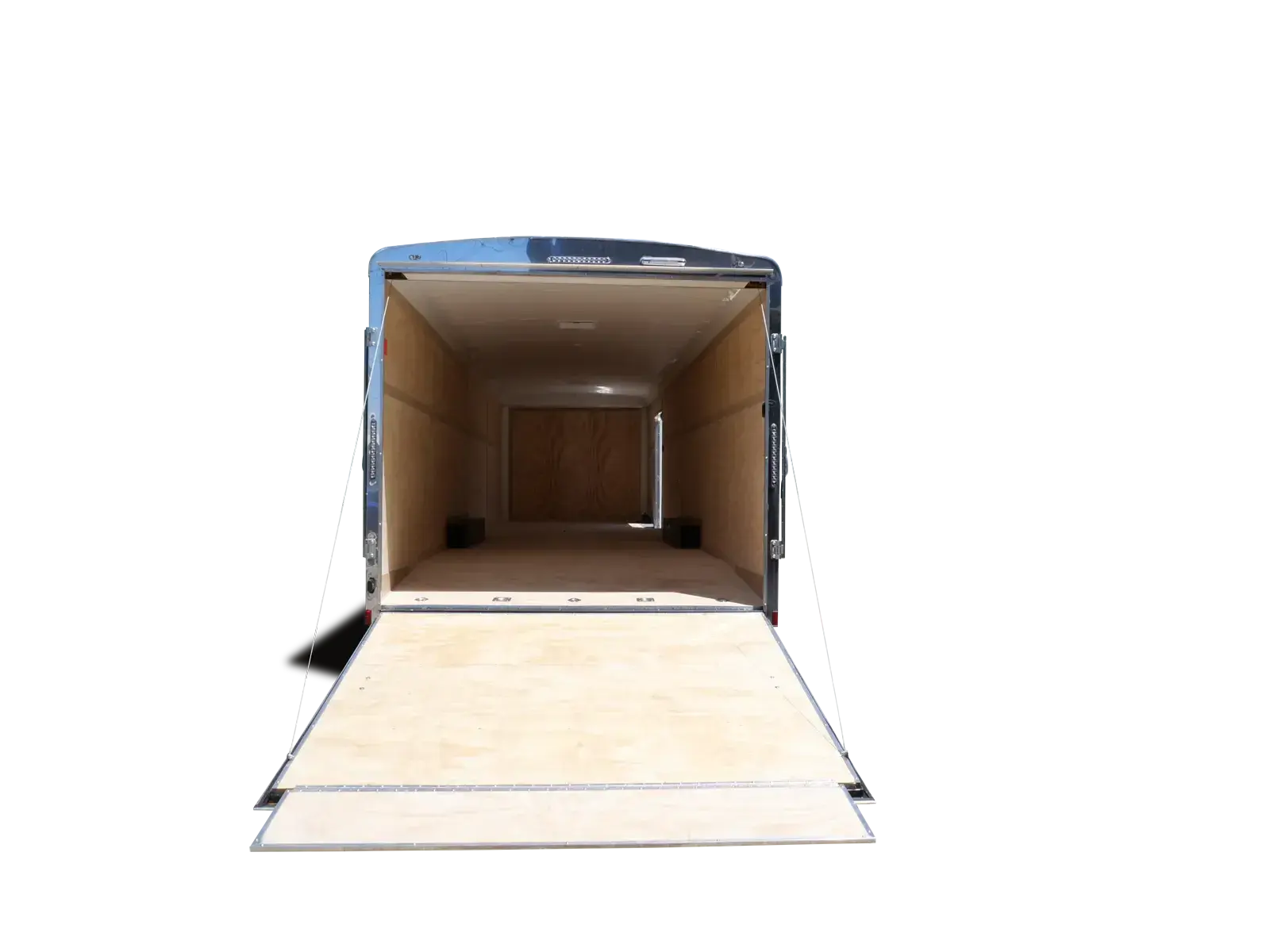

  • Ramp Door with Spring Assist
  • No-Show Beavertail

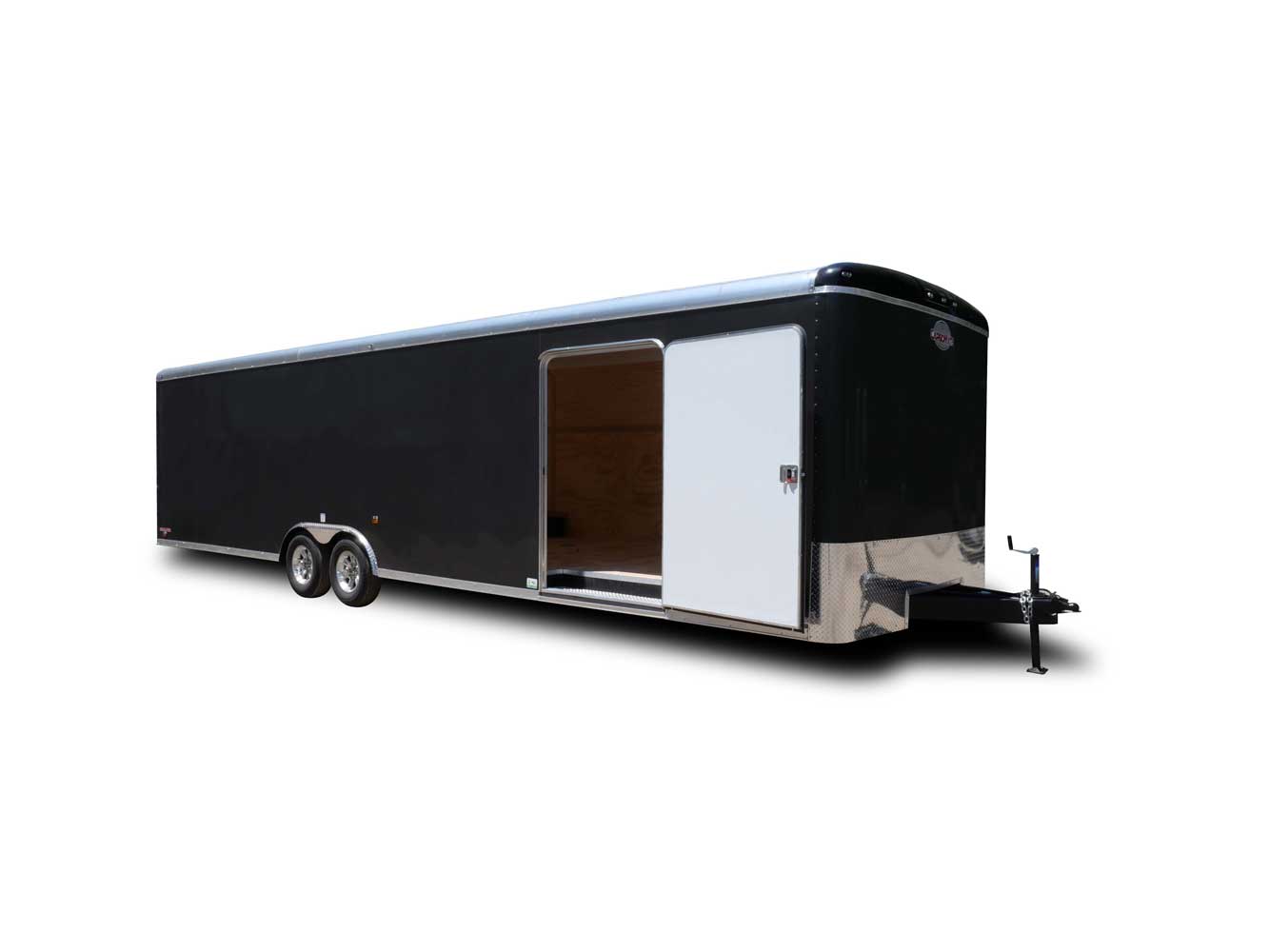

  • 48" Side Door with Steel Step
  • Flushlock on Side Door
  • Undercoated Frame
  • Semi-Style Camlock Door Latches
  • Safety-Spring Chains on Side Door
  • Door Hold-Backs on All Doors
  • Torsion Wide-Track Axle
  • All-Wheel Electric Brakes withBreakaway
  • 12-Volt Breakaway Switch withBattery
  • E-Z Lube Hubs with Grease Caps
  • Aluminum Wheels
  • Chrome Center Caps
  • Radial Tires
  • Steel Sealed Sidewalls
  • 4 – LED Dome Lights
  • 2 – 12 Volt Switches
  • 2 – Roof Vents & 4 – 5,000 lb. D-Rings
  • Aluminum Roof
  • .080 Mill-Finish Aluminum Top Wrap
  • 3/8" Plywood Wall Liner with LauanTrim
  • White Vinyl Ceiling
  • Exterior ATP Fenders
  • TPO Radius Front Cap
  • DOT Approved Lighting
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • Molded License Plate Holder and Light
  • .030 Aluminum Exterior (Avail. in 14Colors)
  • Screwless Exterior Metal
  • Anodized Rear Hoop
  • 3/4" Plywood Floor
  • Urethane Coating on Tongue and RearMember
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • Grease Zerks on Rear Ramp Hinges
  • 24" ATP Stoneguard
  • 110-Volt Package
  • All 110-Volt Packages Require a Finished Ceiling
  • (2) 4' Fluorescent Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 15-Amp Motorbase Plug
  • 110-Volt Racer's Package
  • All 110-Volt Packages Require a Finished Ceiling
  • (5) 4' Fluorescent Lights with (1) Wall Switch
  • (2) 500-Watt Recessed Quartz Lights with (1) Wall Switch
  • (2) Interior Wall Recepts
  • Exterior Wall Recept with GFI
  • 30-Amp Breaker Panel with Lifeline and Cable Hatch
  • Aluminum Package
  • Aluminum Wheels
  • Bright-Dip Aluminum Front Corners
  • Brght-Dip Aluminum Rear Structure
  • 6" of Bright-Dip Aluminum Along the Bottom of Both Sides
  • Contractor Package
  • (2) 12V Quartz Loading Lights with Switch
  • 16" O/C Roof
  • 16" O/C Floor Members
  • 60" Triple Tube Tongue
  • 3/4" Plywood Walls
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (3) Aluminum Ladder Rack Sections
  • Fuel Station Package
    (Requires 8" I-Beam Frame or Larger)
  • 27 Gallon Fuel Tank
  • Fuel Fill
  • Pumping Station
  • Timer Switch
  • Under Floor Storage
  • Runs on 12-Volt System
  • Generator Ready Package
  • 36" x 24" Vented Generator Door
  • Insulated Interior Generator Compartment
  • Carbon Monoxide Detector
  • Interior Package
  • White Vinyl Ceiling Liner
  • White Aluminum Wall Liner
  • Black and White Checkerboard Vinyl Flooring
  • Aluminum Treadplate on Ramp and Flap
  • Checker Floor Does not Include Upper Deck in Gooseneck/5th Wheel
  • Landscaper Package #1
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (2) Non-Powered Roof Vents
  • 48" Side Door with Flushlock
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • Surface Wall Mount E-Track (1 Row on Each Side Wall)
  • Shelf Across Front of Trailer (24" Deep with 3" Lip)
  • Landscaper Package #2
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Roof Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • 16" O/C Floor Upgrade
  • 16" O/C Roof Upgrade
  • Surface Mount E-Track on Sidewalls, 1 Row per Wall
  • Landscaper Packager #3
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent (Total of 2)
  • 60" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Reinforced Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • Extra Grab Handle on Rear Ramp Door
  • 3/4" Plywood Kickplate on Interior Walls
  • Locking Hasps on Side and Rear Doors
  • Super Stock Package
  • Adds All Items in the 110V Racer's Package
  • Adds All Items in the Aluminum Package
  • .040 Exterior Metal (White or Black)
  • Rubber Floor Covering Front 8' w/ ATP Rear and on Ramp
  • Double 24" RV Doors with Piano Hinges and Flush Lock
  • L-Shaped Base Cabinet with Overhead and Wardrobe
  • Glued Interior Aluminum Wall Panels
  • Freezer-Type Ramp Door Latches
  • Race Mate (4) Piece Accessory Pack
  • 36" x 24" Vented Generator Door
