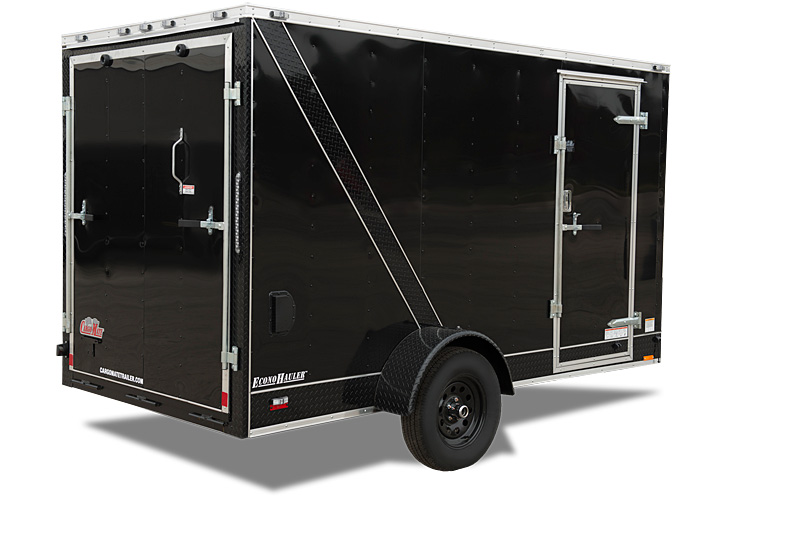

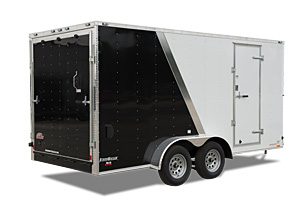

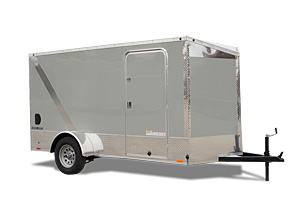

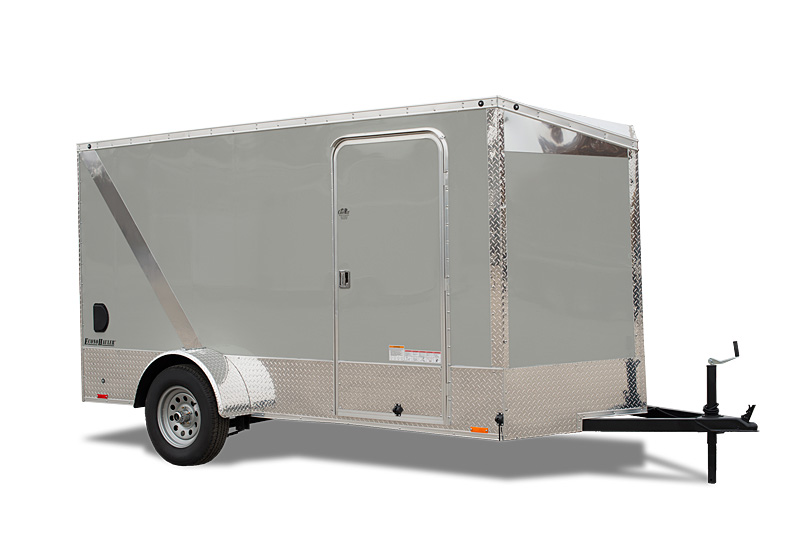

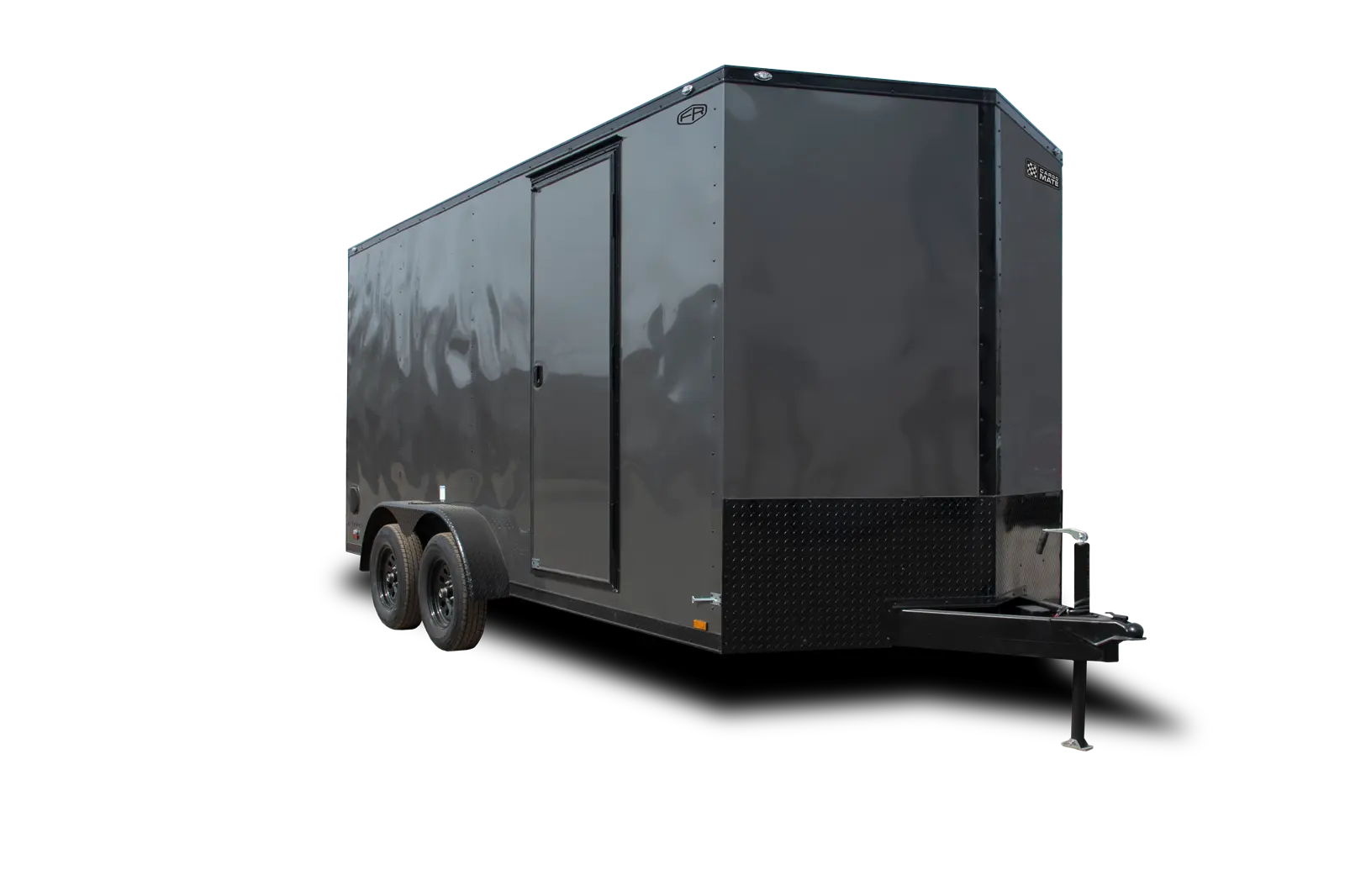

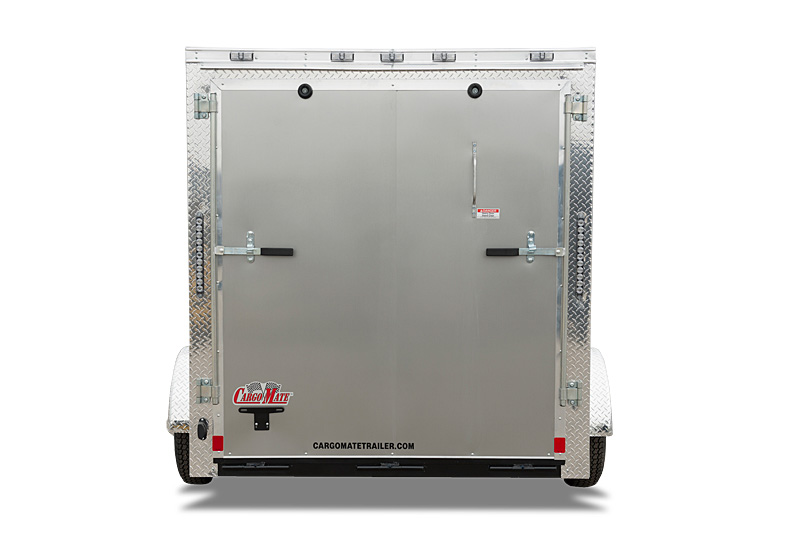

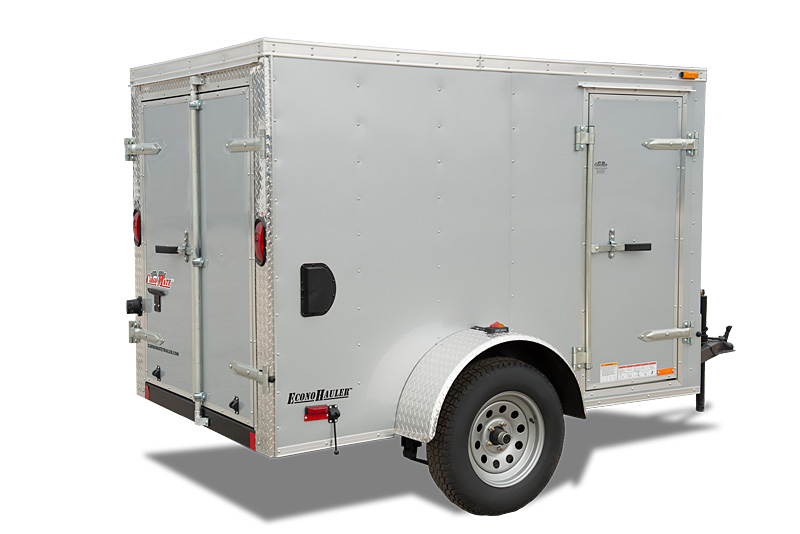

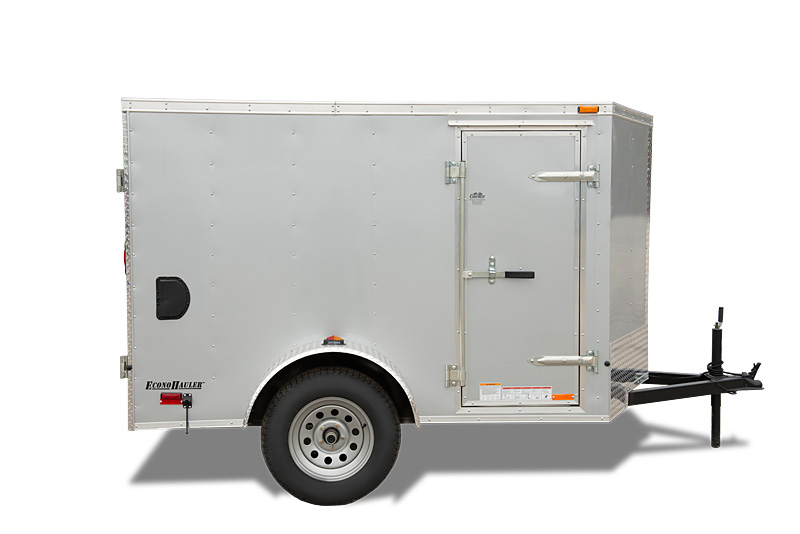

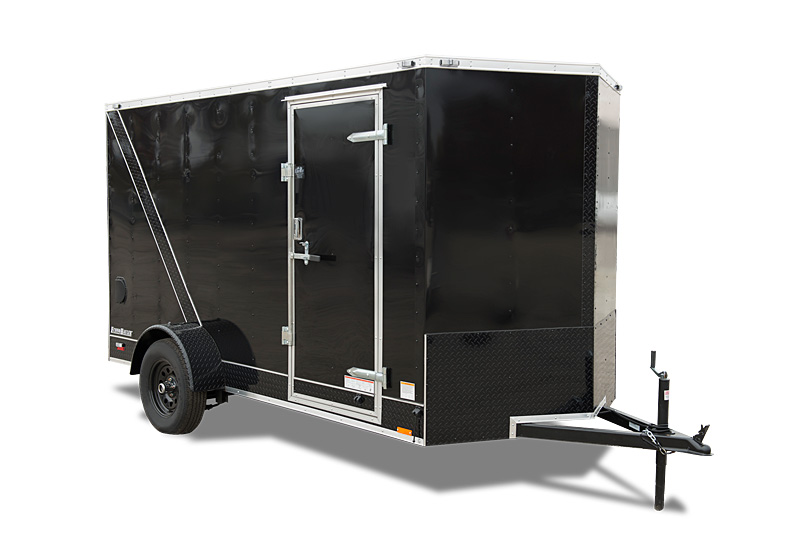

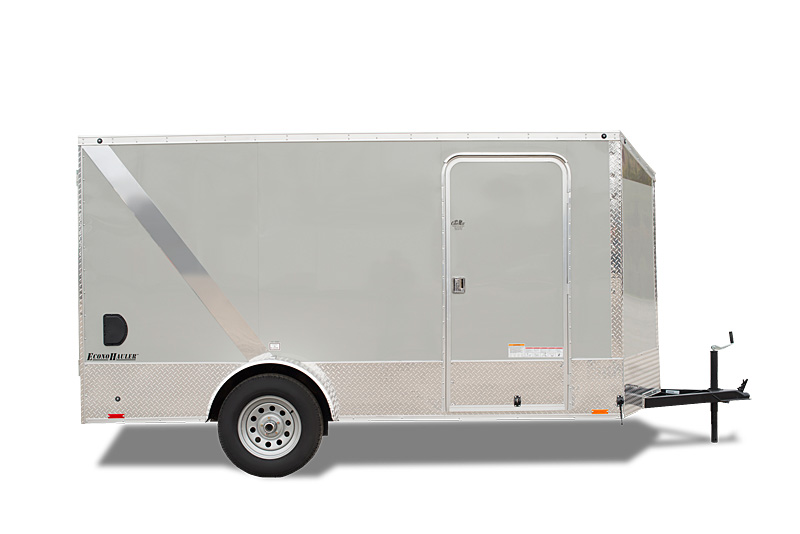

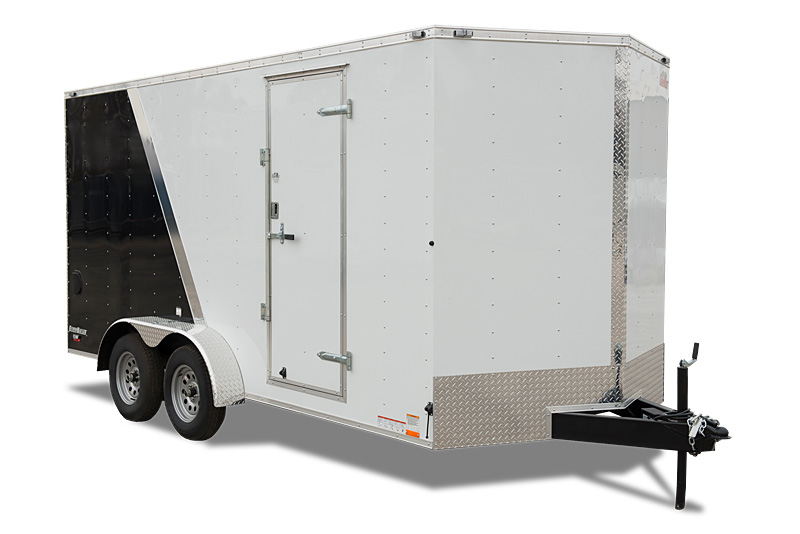

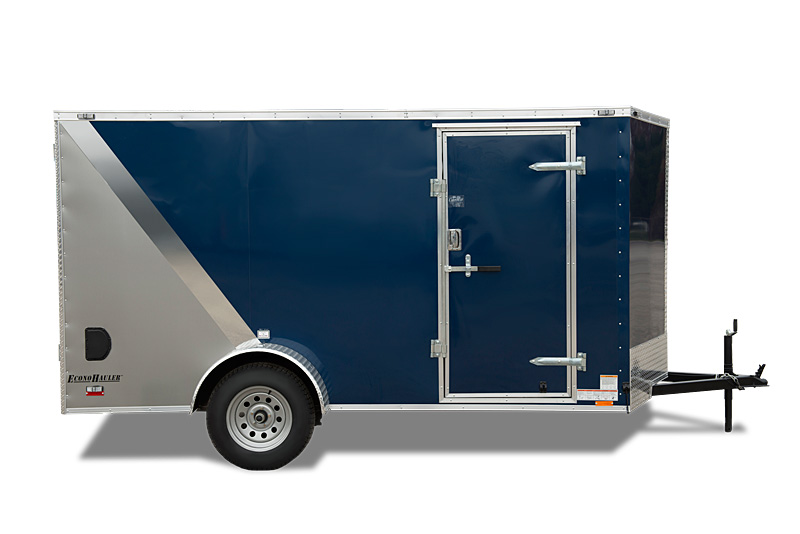

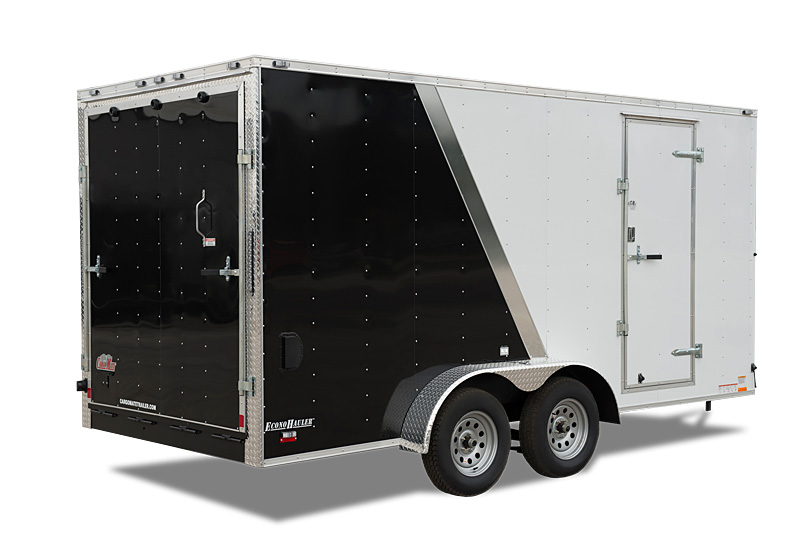

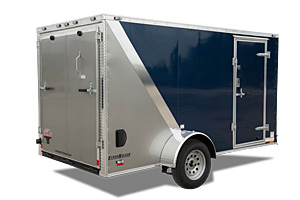

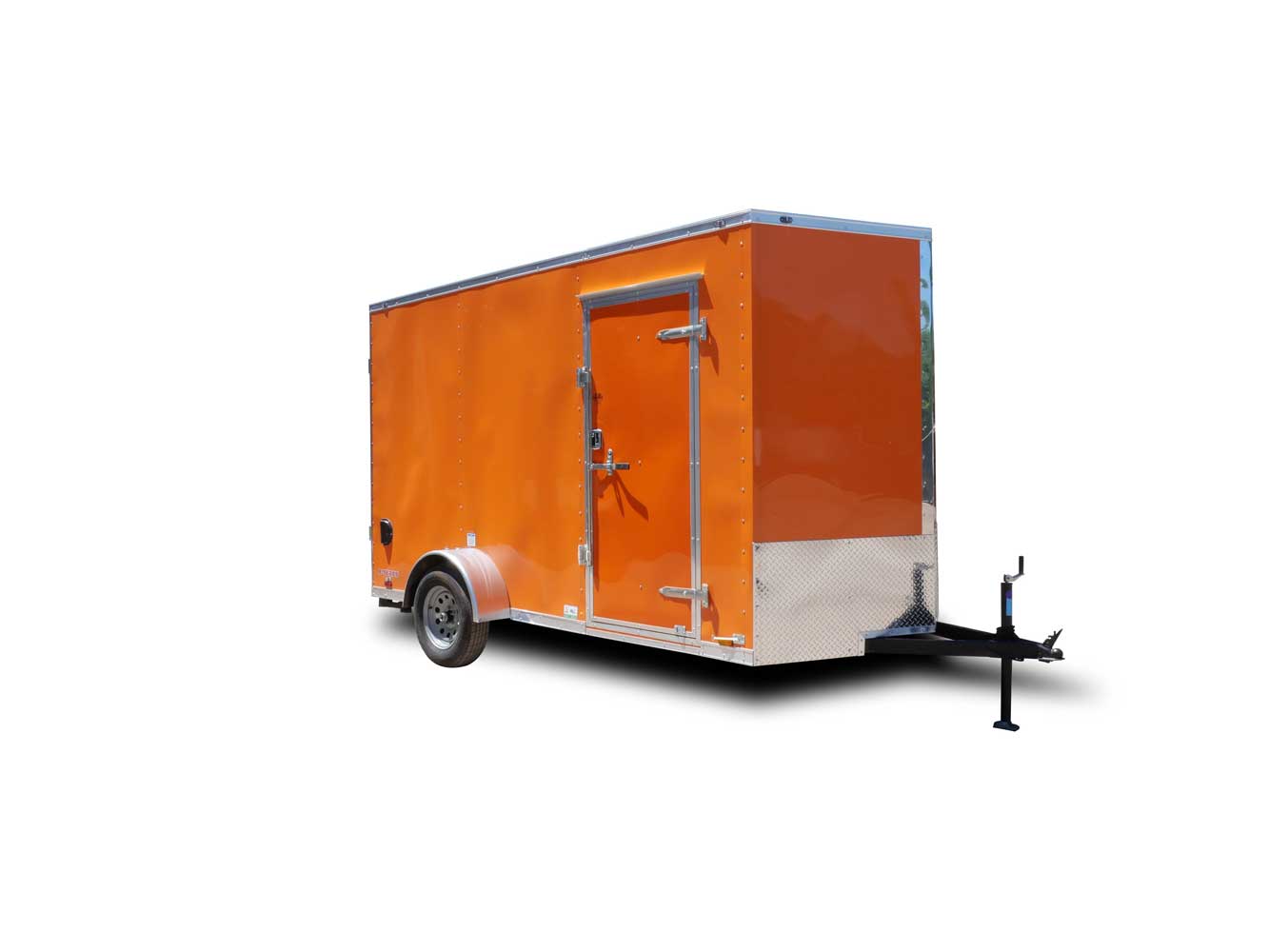

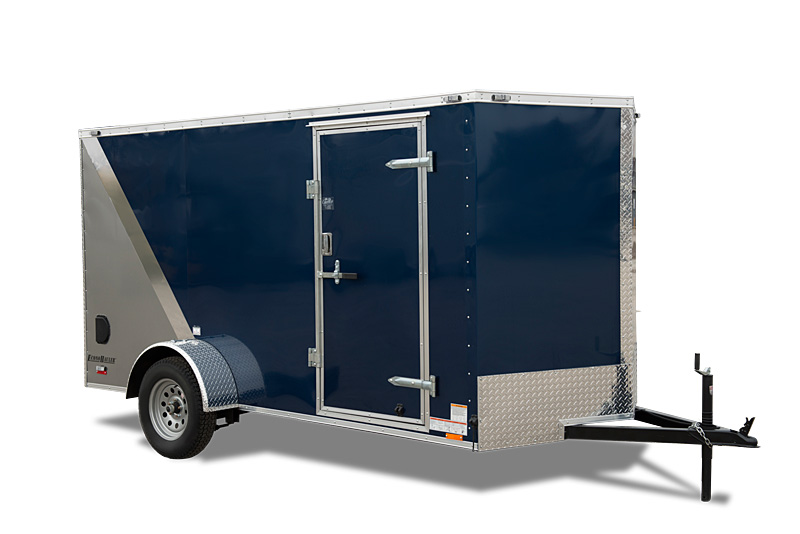

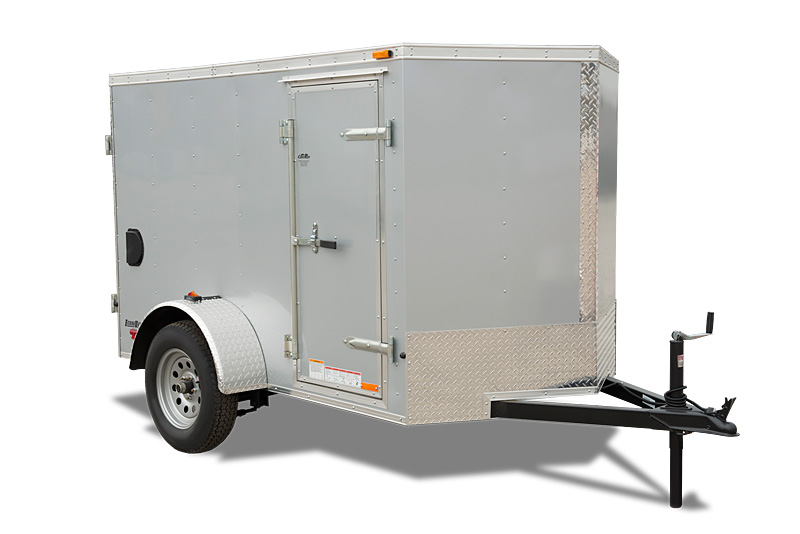

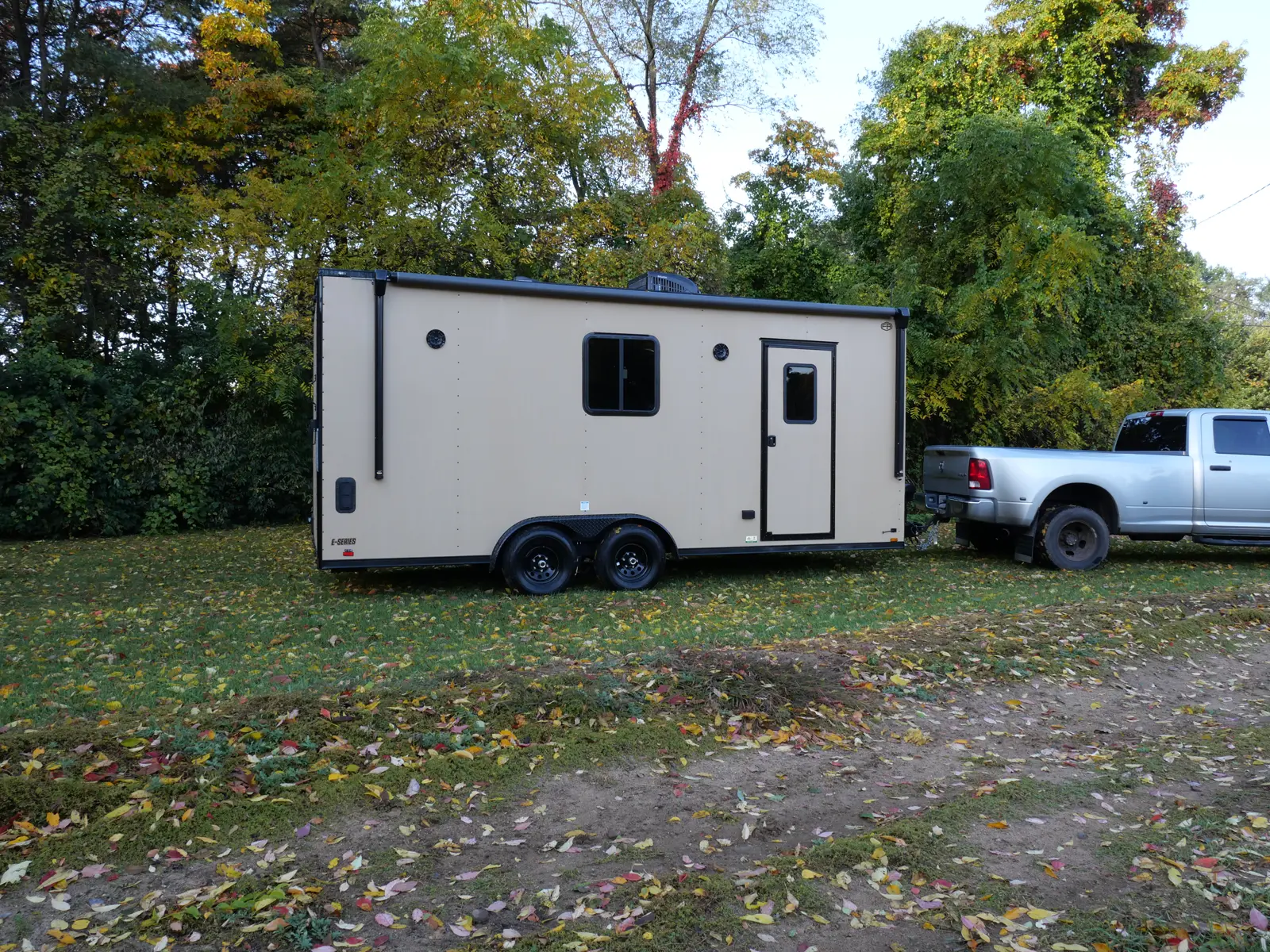

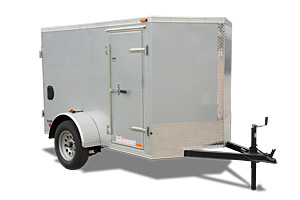

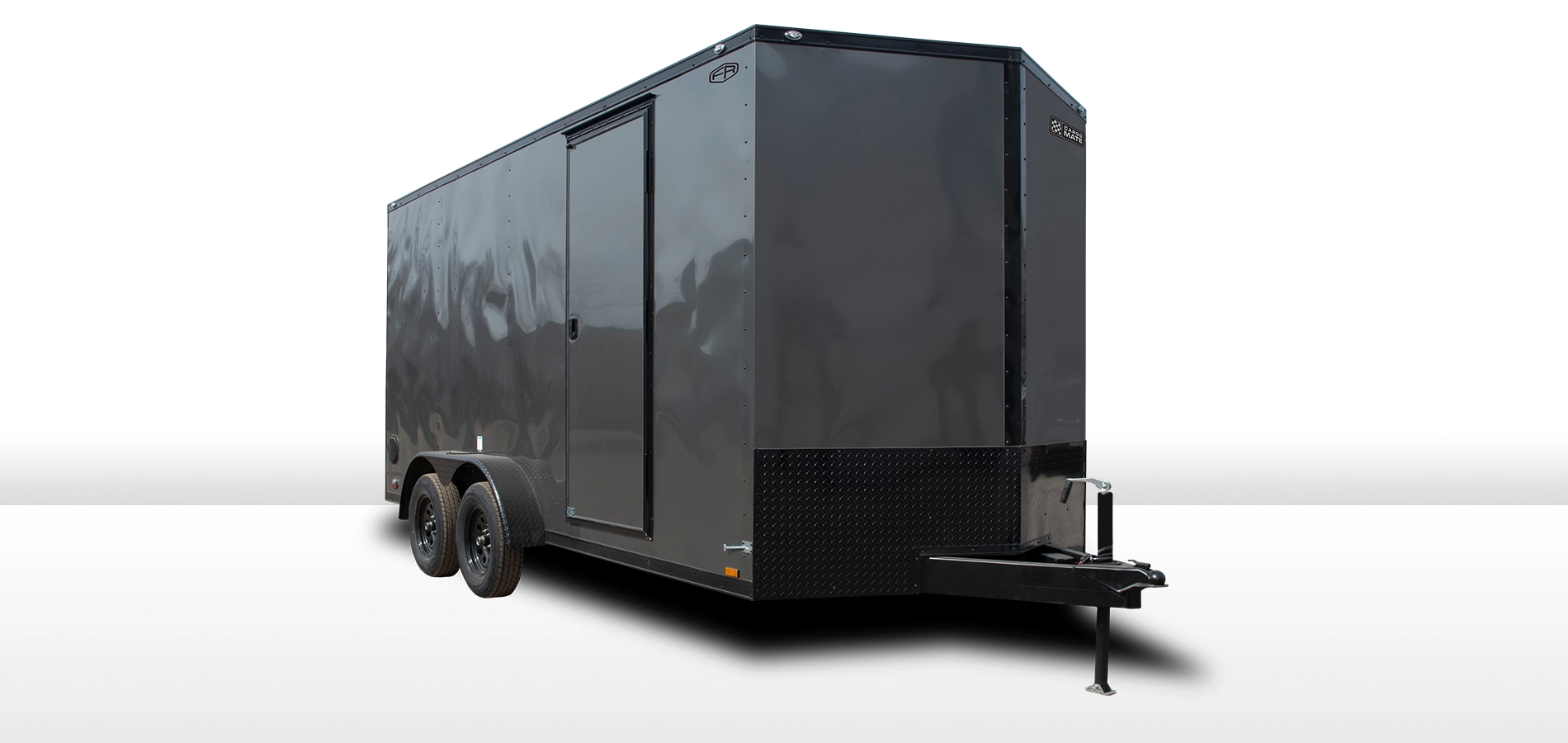

E-Series trailers range in size from a 5’ x 8’ Single axle to a 8’ x 26’ Tandem axle model. They feature an 18" front wedge for extra storage space and easier towing. The 5-6 foot wide models offer a standard payload capacity from 1,200 - 5,400 lb. while the 7-8 foot wide models offer a capacity of 1,900 - 3,900 lb. Double Barn doors (single on 5’ x 8’) are the standard rear door for the E-Series with an optional ramp door available.

VIEW THE TOP REASONS TO BUY CARGO MATE

Care Camps, fighting cancer and making memories

Specifications

Print

Floorplan:EHW510SAEHW58SAEHW610SAEHW612SAEHW612TA2EHW712SAEHW712TA2EHW714TA2EHW716TA2EHW816TA2EHW830TA2EHW8518TA2EHW8520TA2EHW8522TA2EHW8524TA2EHW8526TA3
GVWR:2990 lb.2990 lb.2990 lb.2990 lb.7000 lb.3500 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.7000 lb.9800 lb.
Payload Capacity:1890 lb.2100 lb.1790 lb.1690 lb.5400 lb.1900 lb.5150 lb.5050 lb.4900 lb.4500 lb.3900 lb.3930 lb.3800 lb.3670 lb.3540 lb.5700 lb.
Exterior Length:13' 10"11' 10"13' 10"15' 10"15' 10"15' 10"15' 10"17' 10"19' 10"19' 10"23' 10"21' 10"23' 10"25' 10"27' 10"29' 10"
Exterior Width:6' 10"6' 10"7' 10"7' 10"7' 10"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"8' 6"
Exterior Height:6' 6"6' 7"7' 6"7' 6"8' 1"8' 0"8' 0"8' 0"8' 0"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"8' 4"
Interior Length:11' 2"9' 2"11' 2"13' 2"13' 2"13' 1"13' 1"15' 1"17' 1"17' 1"21' 1"19' 1"21' 1"23' 1"25' 1"27' 1"
Interior Width:4' 8"4' 8"5' 9"5' 9"5' 9"6' 8"6' 8"6' 8"6' 8"Total: 7' 6"
BWW: Between the wheel wells81"
Total: 7' 6"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Total: 8' 0"
BWW: Between the wheel wells81"
Interior Height:4' 11"4' 11"5' 11"5' 11"6' 5"6' 1"6' 1"6' 1"5' 11"6' 4"6' 4"6' 4"6' 4"6' 4"6' 4"6' 2"
Rear Door Type:DoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleDoubleRampRampRampRampRamp
Rear Door Width:3' 11"3' 11"4' 11"4' 11"4' 11"5' 11"5' 11"5' 11"5' 11"6' 9"6' 9"7' 5"7' 5"7' 5"7' 5"7' 5"
Rear Door Height:4' 5"4' 4"5' 5"5' 5"5' 11"5' 7"5' 7"5' 7"5' 5"5' 11"5' 11"6' 2"6' 2"6' 2"6' 2"6' 2"
Coupler Size:2"2"2"2"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"2-5/16"
Curb Weight:110 lb.890 lb.1200 lb.1300 lb.1600 lb.1600 lb.1850 lb.1950 lb.2100 lb.2500 lb.3100 lb.3070 lb.3200 lb.3330 lb.3460 lb.4100 lb.
Hitch Weight:110 lb.90 lb.120 lb.130 lb.160 lb.160 lb.185 lb.200 lb.216 lb.250 lb.310 lb.310 lb.320 lb.330 lb.340 lb.410 lb.
Hitch Height:16"16"16"16"17"18"18"18"20"20"20"20"20"20"20"20"
Platform Height:17"17"17"17"18"19"19"19"21"21"21"18"18"18"18"20"
Axle:1-2,990 1-2,9901-2,990 1-2,990 2-3,5001-3,5002-3,5002-3,5002-3,5002-3,5002-3,5002-3,5002-3,5002-3,5002-3,5002-5,200
Brakes:OptionalOptionalOptionalOptionalOptionalElectricElectricElectricElectricElectricElectricElectricElectricElectricElectricElectric
Tires:ST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST205/75R15/CST225/75R15/D
Wheels:5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt5 Bolt6 Bolt
Main Frame:3" Tube3" Tube3" Tube3" Tube4" Tube4" Tube4" Tube4" Tube6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam6" I-Beam8" I-Beam
Floor:3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood3/4" Plywood
Walls:3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood3/8" Plywood

Features & Options

Print

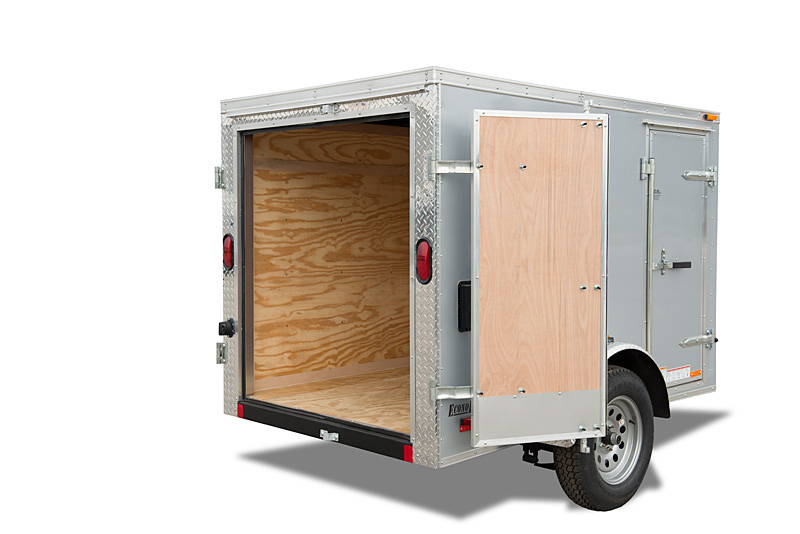

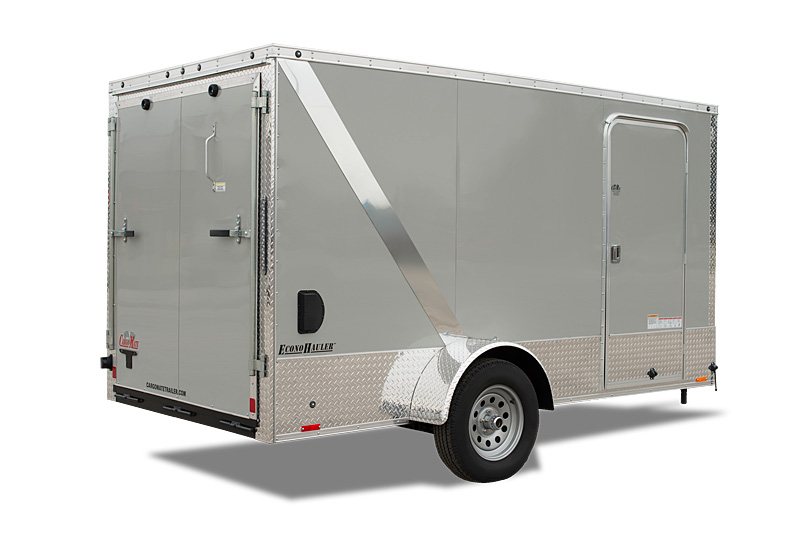

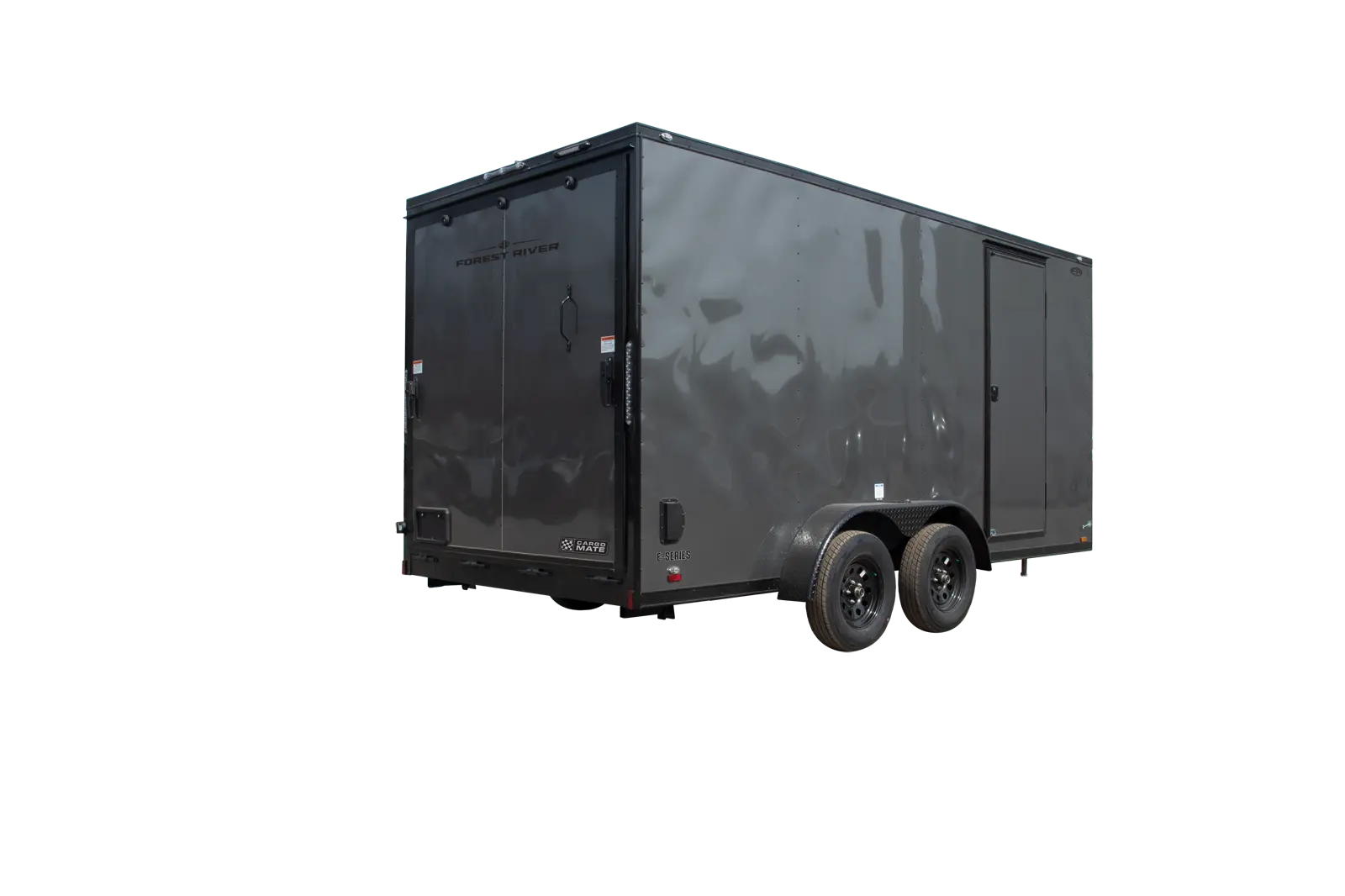

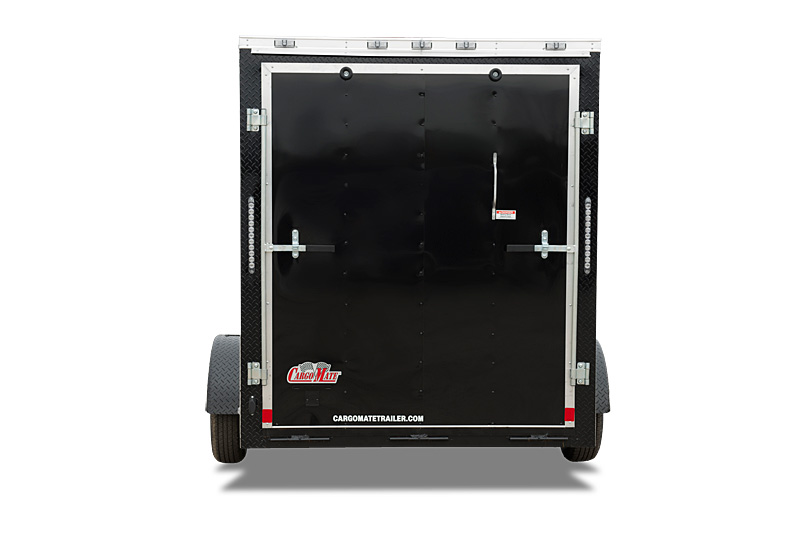

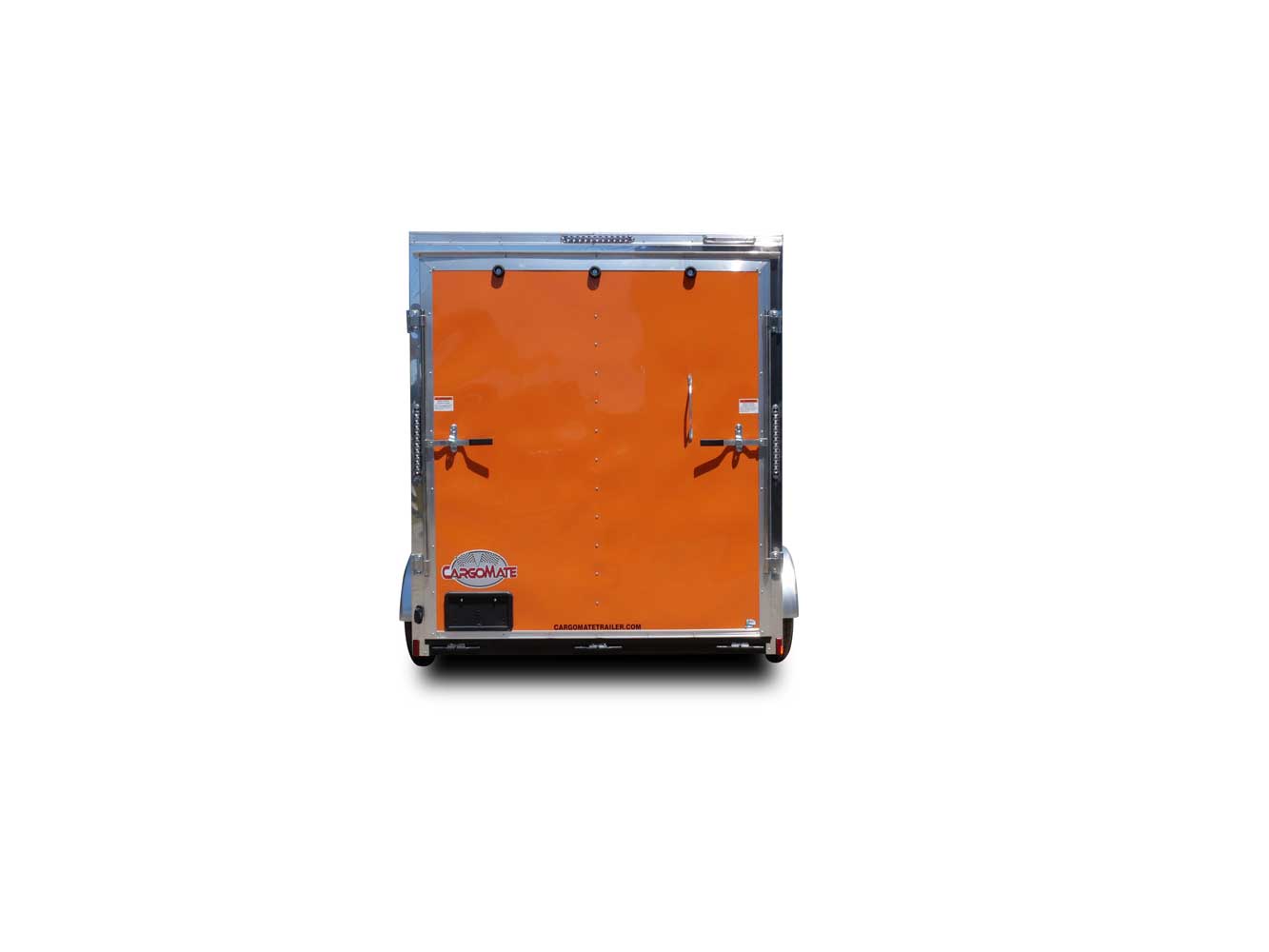

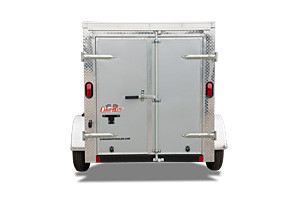

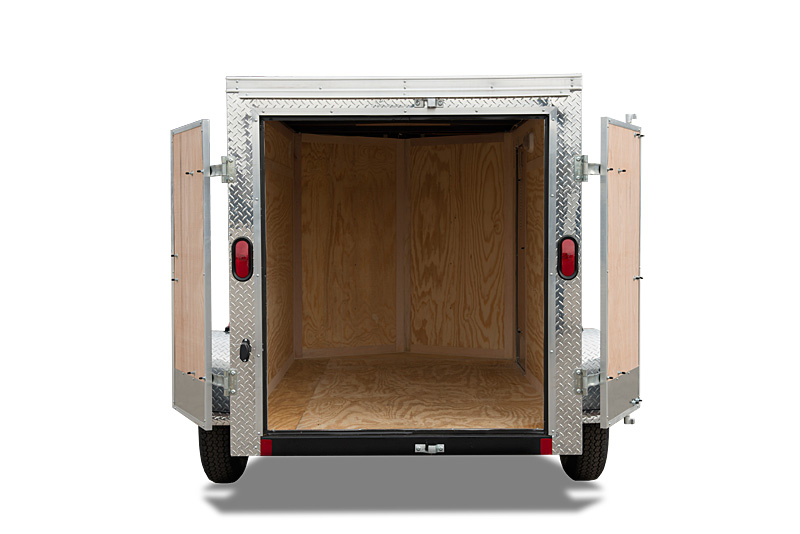

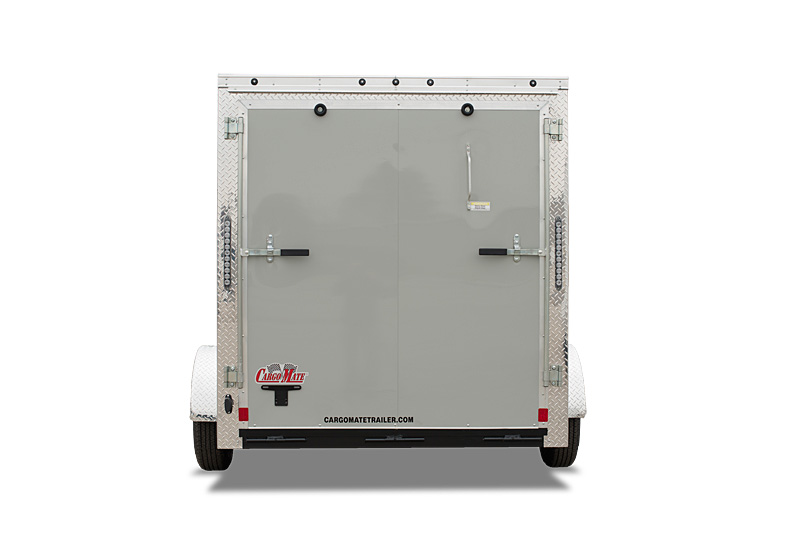

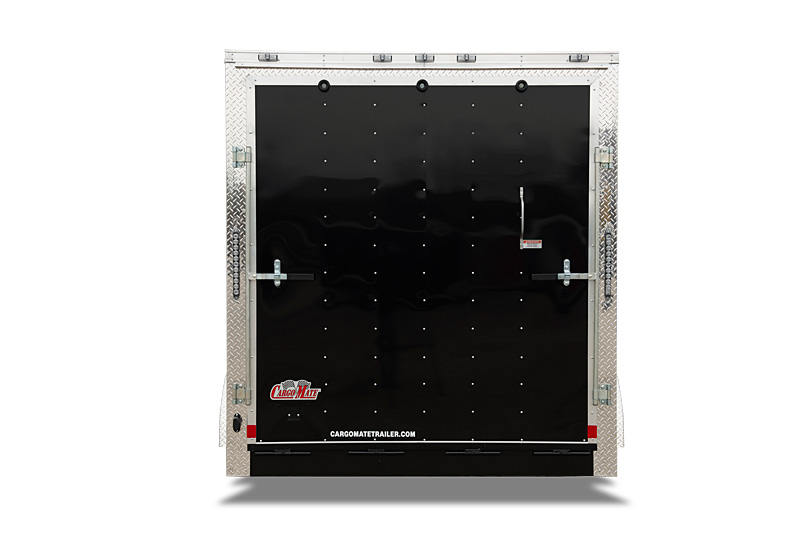

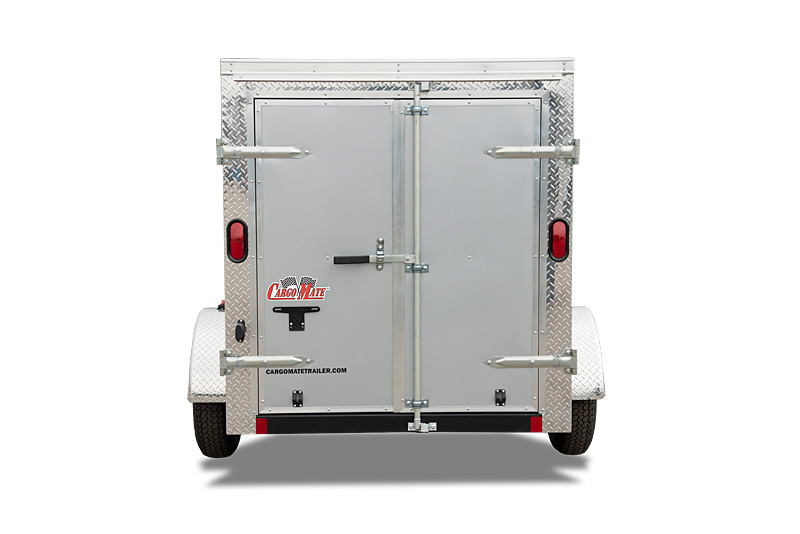

  • Double Rear Doors

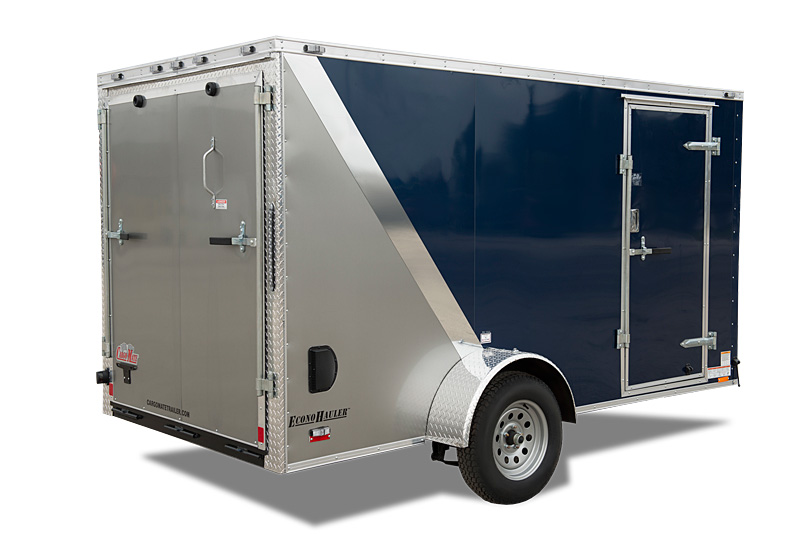

  • 18" Wedge-Front Nose

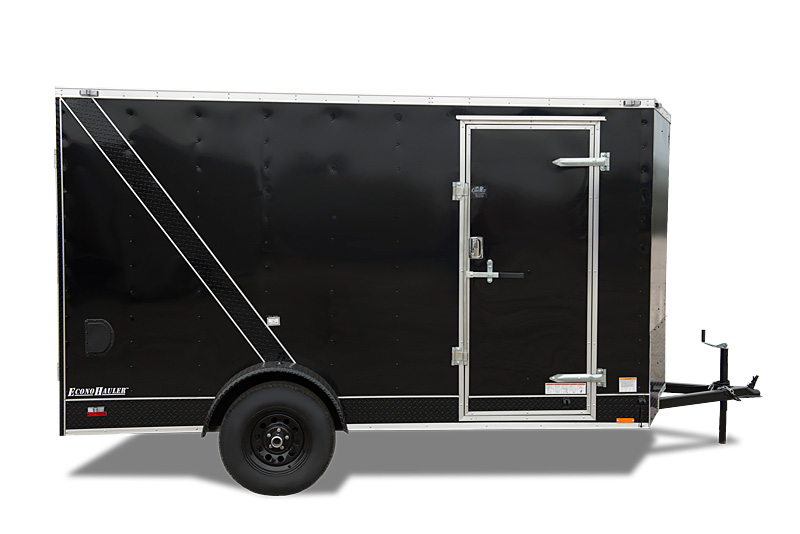

  • C/S Door (24" on 5 wide, 32" on6 & 7 wide, 36" on 8 wide)
  • Semi-Style Camlock Door Latch
  • Undercoated Frame
  • Door Hold-Back on Rear Door
  • Leaf-Spring Axle
  • E-Z Lube Hubs
  • Silver Powder Coated Wheels
  • Radial Tires
  • Galvanized Roof
  • Aluminum Top Rails
  • 16" ATP Stoneguard
  • 1 – 12V LED Dome Light
  • 2 - Flow Thru Sidewall Vents (on 5,6,7, & 8 wides)
  • Aluminum Exterior Fenders
  • Clear Lens LED Clearance Lights
  • Clear Lens LED Strip Tail Lights
  • DOT Lighting
  • License Plate Holder with Light
  • .030 Aluminum Exterior
  • Anodized Aluminum Wrap
  • Exposed Steel Painted Epoxy Black
  • Tongue Jack w/ Sand Pad
  • Welded Safety Chains
  • Full-Color Decals
  • ***Flat Front w/ Anodized Corners in place of of 18" Wedge Available
8' 6" Wides Include
  • 102" Wide Body Design

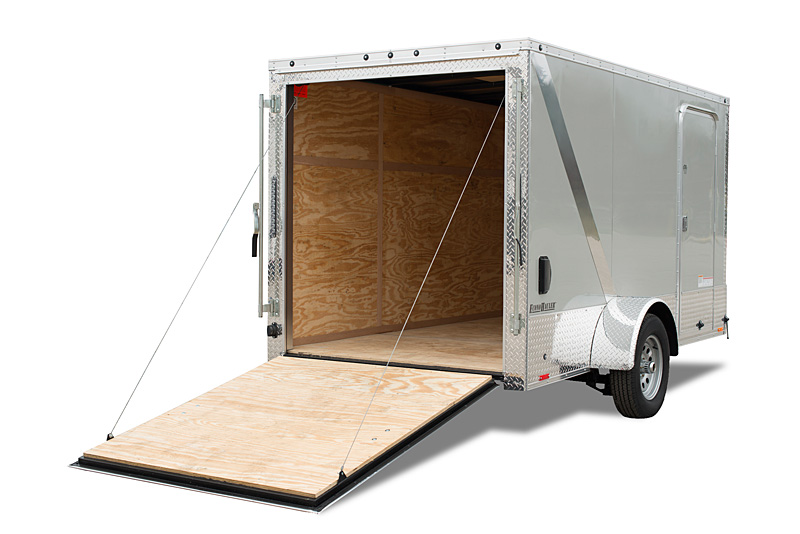

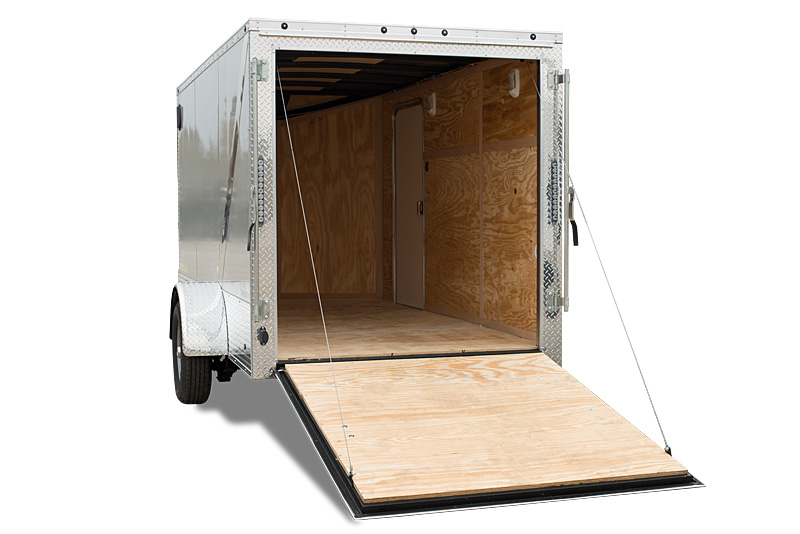

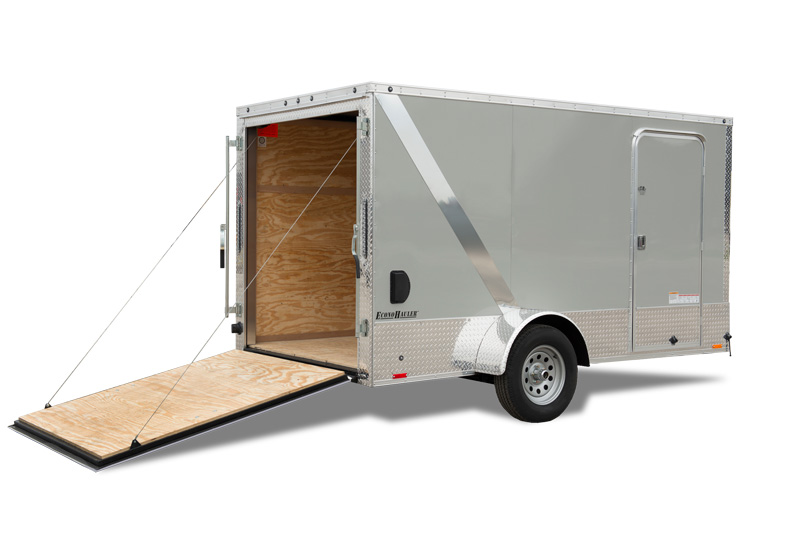

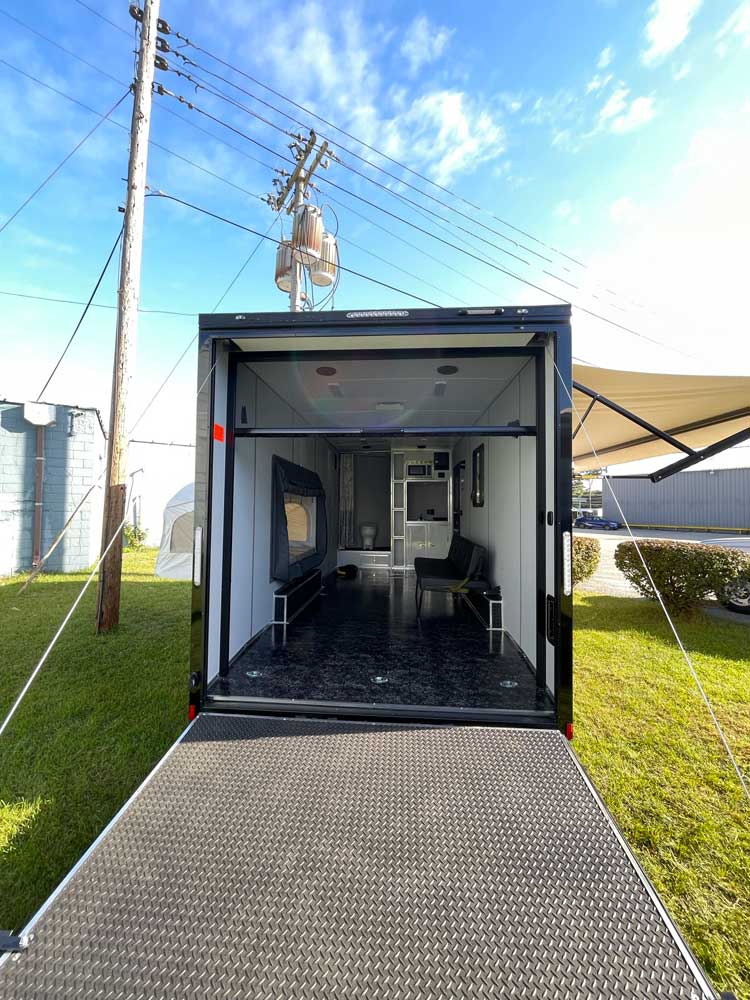

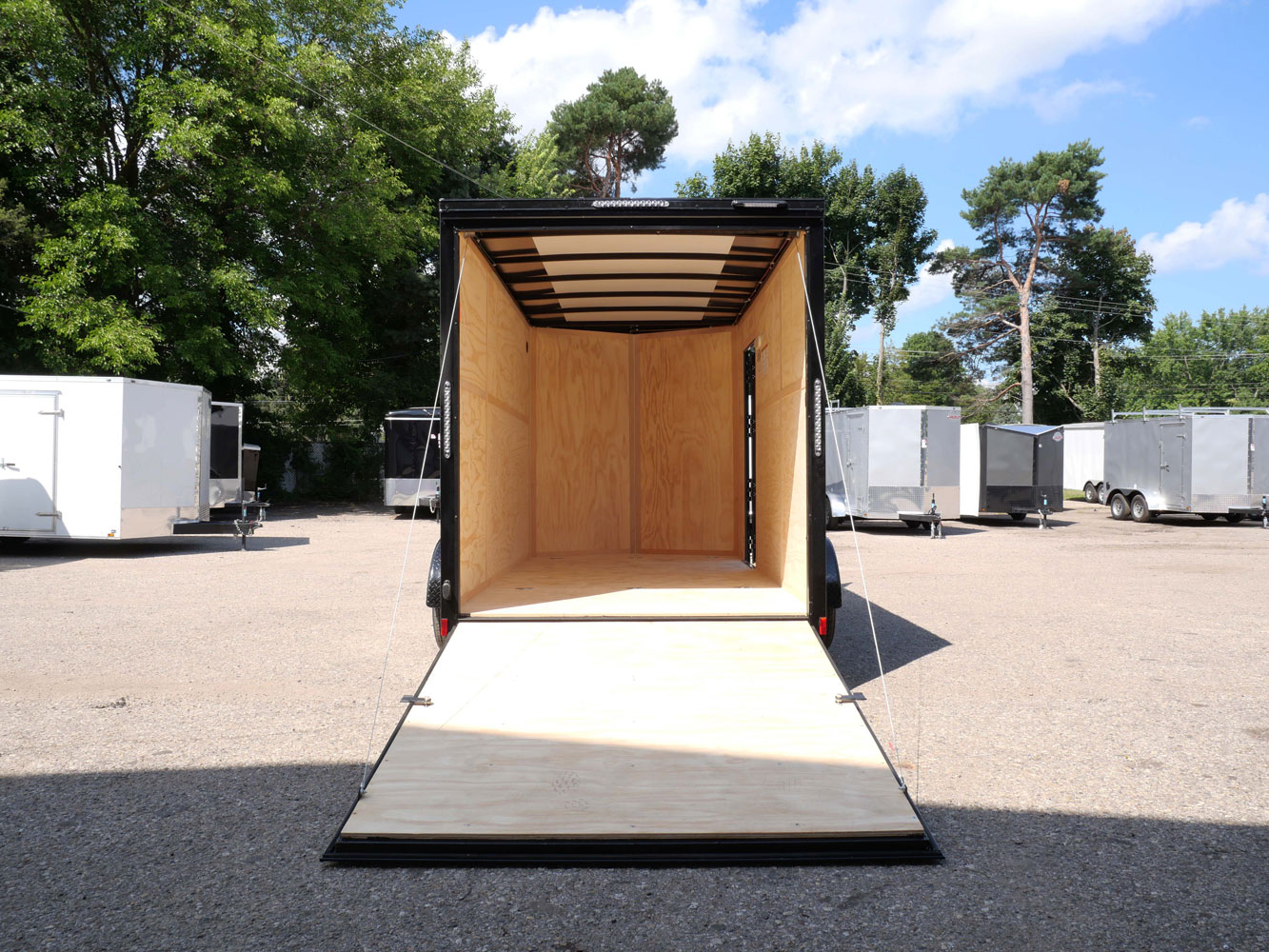

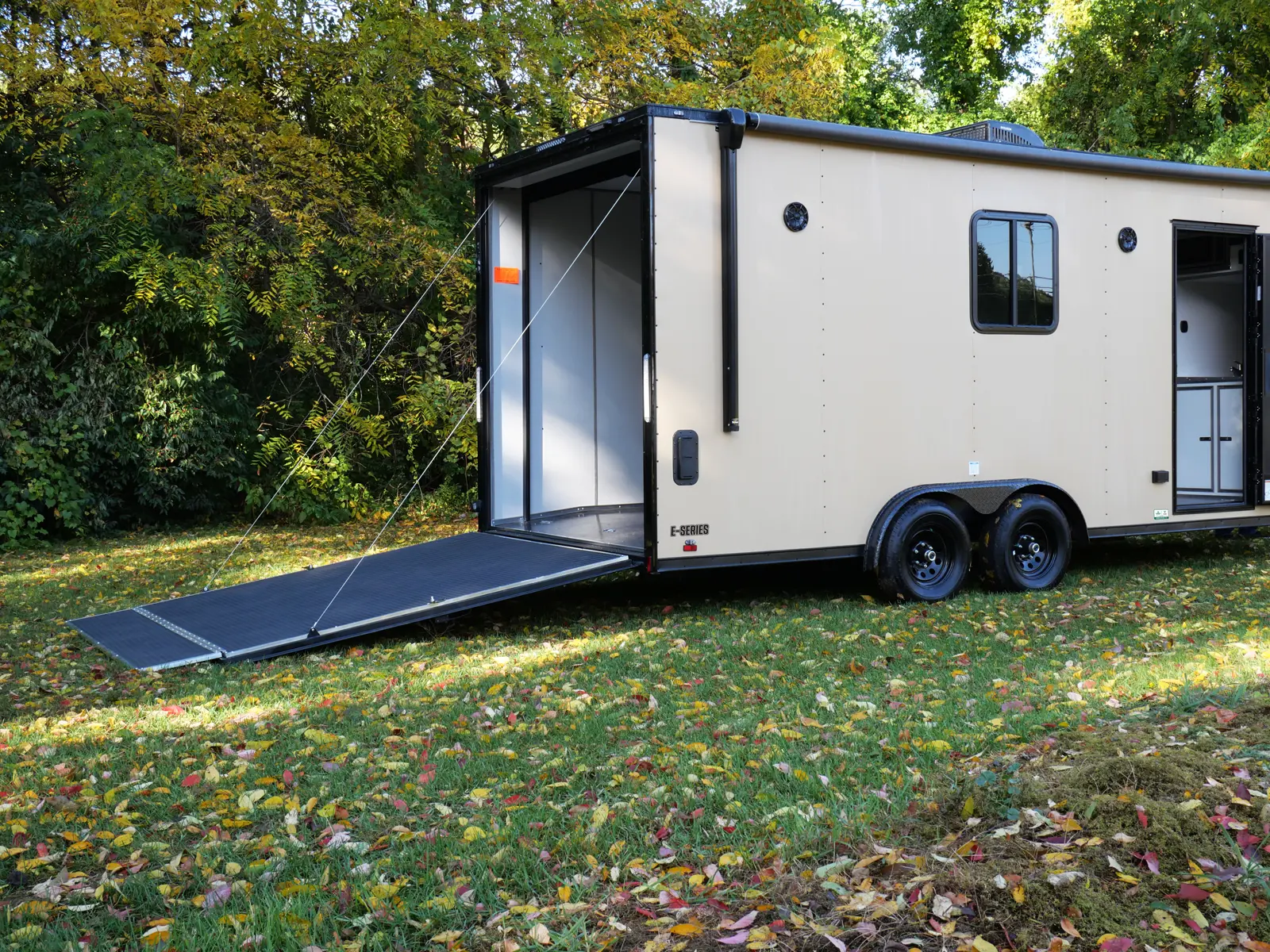

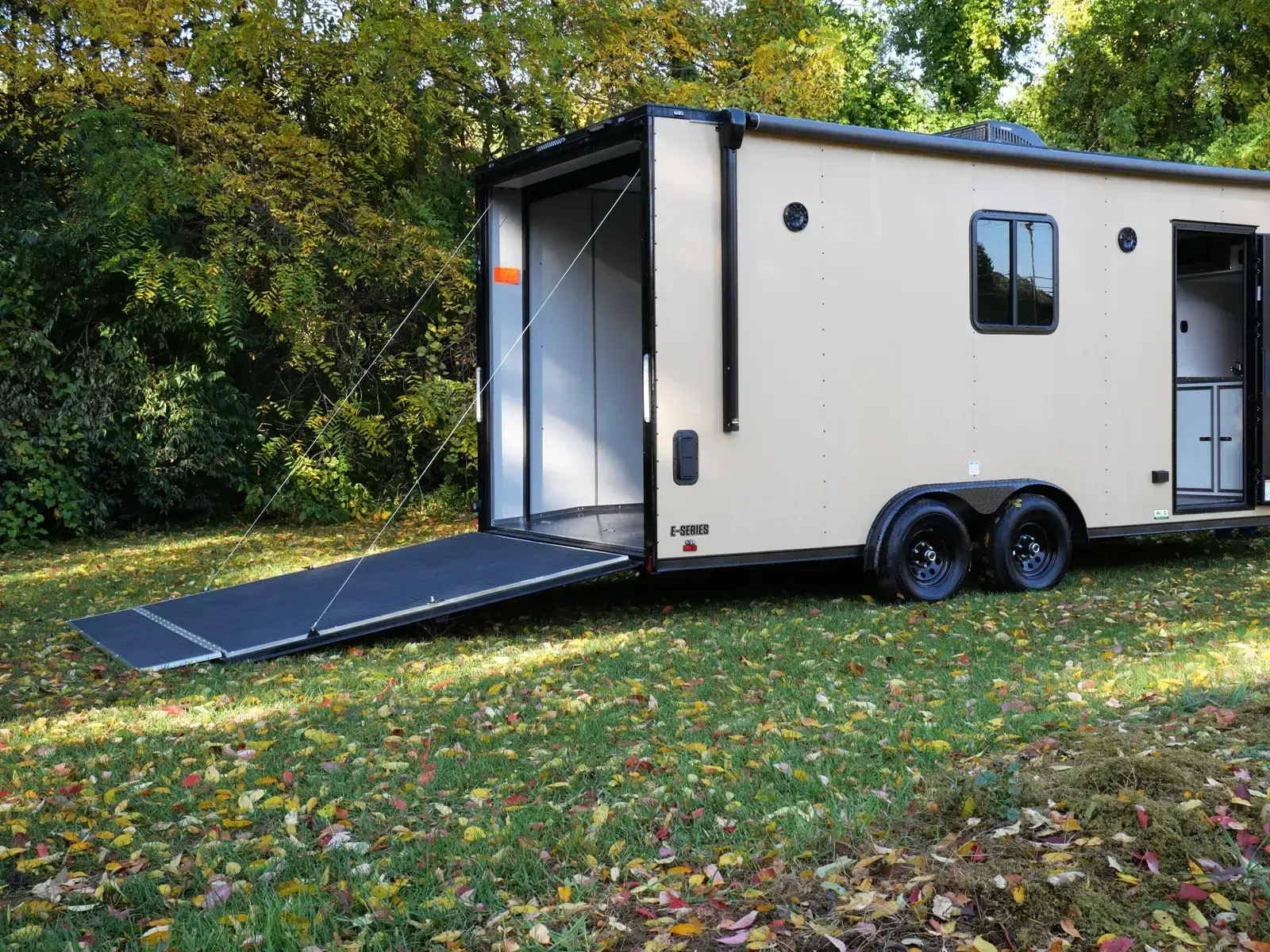

  • Ramp Door with Spring Assist
  • No-Show Beavertail
  • 36" Side Door with Steel Step
  • 2-12 Volt LED Dome Lights
  • 1-12 Volt Switch
  • 1-Roof Vent
  • Aluminum Package
  • Aluminum Wheels
  • Bright-Dip Aluminum Front Corners
  • Brght-Dip Aluminum Rear Structure
  • 6" of Bright-Dip Aluminum Along the Bottom of Both Sides
  • Contractor Package
  • (2) 12V Quartz Loading Lights with Switch
  • 16" O/C Roof
  • 16" O/C Floor Members
  • 60" Triple Tube Tongue
  • 3/4" Plywood Walls
  • (2) 2-Way Sidewall Vents (Aluminum)
  • (3) Aluminum Ladder Rack Sections
  • 24" Aluminum Tread Plate Stoneguard (ATP) Upgrade
  • (1) Dome Light (Total of 2)
  • (1) 12 Volt Switch for Domes
  • Flushlock
  • Rear Ramp Door
  • 24" Aluminum Tread Plate Stoneguard (ATP) Upgrade
  • (1) 12V Dome Light (Total of 2)
  • (1) 12V Switch for Domes
  • (1) Pair Stabilizer Jacks
  • 24" Aluminum Tread Plate Stoneguard (ATP) Upgrade
  • (3) Dome Lights (Total of 4)
  • (2) 12V Switches for Domes
  • Radial Tire Upgrade
  • 16" O/C Floor Crossmembers
  • 6" Extra Height
  • Rear Ramp Door
  • (1) Pair Stabilizer Jacks
  • (4) Surface Mount D-Rings
  • Landscaper Package #1
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (2) Non-Powered Roof Vents
  • 48" Side Door with Flushlock
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4)
  • (1) Wall Switch (Total of 2)
  • Surface Wall Mount E-Track (1 Row on Each Side Wall)
  • Shelf Across Front of Trailer (24" Deep with 3" Lip)
  • Landscaper Package #2
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent
  • 54" Extended Triple-Tube Tongue
  • 16" O/C Roof Upgrade
  • Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • 16" O/C Floor Upgrade
  • 16" O/C Roof Upgrade
  • Surface Mount E-Track on Sidewalls, 1 Row per Wall
  • Landscaper Packager #3
  • (2) 2-Way Side Wall Vents (Aluminum)
  • (1) Non-Powered Roof Vent (Total of 2)
  • 60" Extended Triple-Tube Tongue
  • 16" O/C Floor Upgrade
  • Reinforced Rear Ramp Door with Spring Assist
  • (2) 12-Volt Dome Lights (Total of 4) with Additional Wall Switch
  • Extra Grab Handle on Rear Ramp Door
  • 3/4" Plywood Kickplate on Interior Walls
  • Locking Hasps on Side and Rear Doors
  • Northern Package
  • 16" O/C Roof Upgrade
  • One-Piece Aluminum Roof
  • 24" Plastic Barrier on Sides (Screwed Metal Only)
  • 36" RV Door Upgrade (No Window or Screen)
  • (2) 12-Volt 55 Watt Quartz Loading Lights with Wall Switch
  • (2) Stabilizer Jacks Under Rear Corners
  • Aluminum Cambar Upgrade
  • 6" of ATP Along Exterior Bottom of Side Walls


Virtual Tours



Videos

Some videos may show features or options not available on all products. Contact our service representatives or your local dealer if you have questions about how your specific trailer operates.

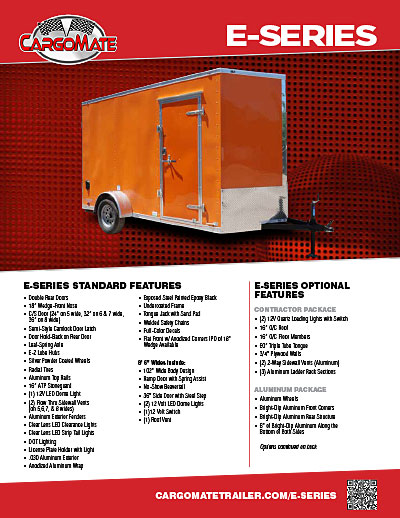

Literature
